Arizona Wave 5000 Double Wings Carport | Double Carport Kit
$8,980.00
The Arizona wave 5000 double carport is a high performance carport and outdoor structure; its two-post form facilitates easy access as well as allows you to use it as an outdoor cover.
Brand: Palram | Canopia
OUT OF STOCK
Available on backorder
Please contact us before ordering to get an estimated date for new stock arrival
Delivery ETA
3–10 biz days (metro)
*Free Delivery
SYD · MEL · BRISB · ADELA
Warranty
| Description | DIMENSIONS | ASSEMBLY | WARRANTY | COMPARE CARPORTS | Reviews (0) |

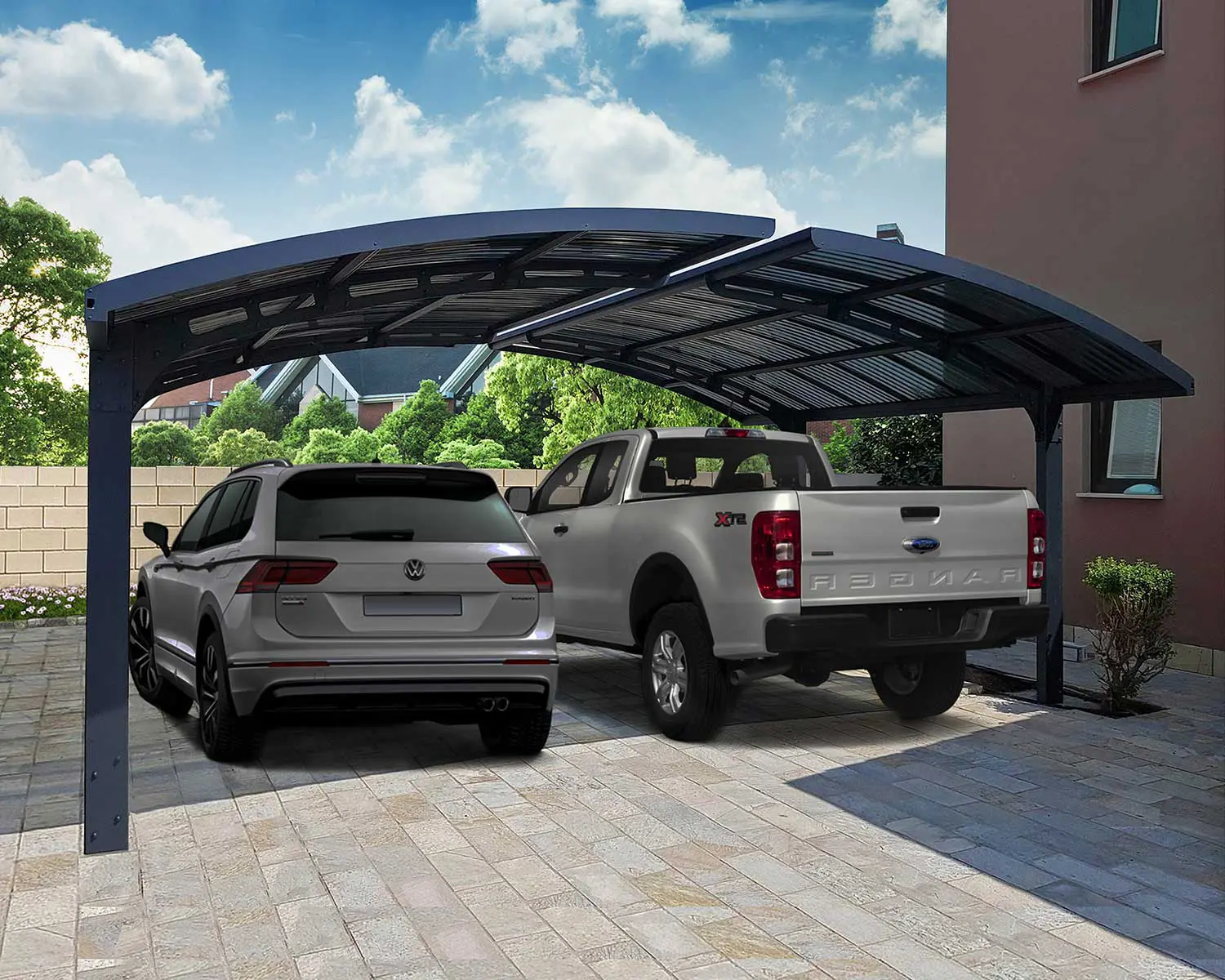

Arizona Wave 5000 Double Carport:
The Arizona 5000 Wave Double Carport has a unique design, high performance and robust carport and outdoor structure.
It was crafted to meet your needs for outdoor protection; its two-legged form facilitates easy access as well as allows you to use it as an outdoor cover. The frame and roofing design are a unique curve shape for the Arizona Wave 5000 Double Carport, in addition to the curve shape design an important feature of the design is give the carport the ability to withstand harsh weather conditions. Most noteworthy are the abilities of the polycarbonate panels, they block harmful UV rays, partially transmit natural sunlight and provide sufficient shading. As a result the Arizona Wave 5000 Carport provides your family with an elegant cover that is sturdy, maintenance and rust free for many years to come.
Specifications
- WIND RESISTANCE – 120km/hr | 75ml/hr
- SNOW LOAD – 75kg/m² | 15.4lbs/ft²
- LIGHT TRANSMISSION – 10%
- POLYCARBONATE PANEL – 0.7mm
Polycarbonate panels
• Virtually unbreakable, 100% UV protected, bronze corrugated Polycarbonate panels are high impact and shatter resistant
• Maintain their integrity, provide complete UV blockage, and are 100% UV protected; so they do not discolour, fracture or become brittle over time
• Ready to assemble pre-cut panels

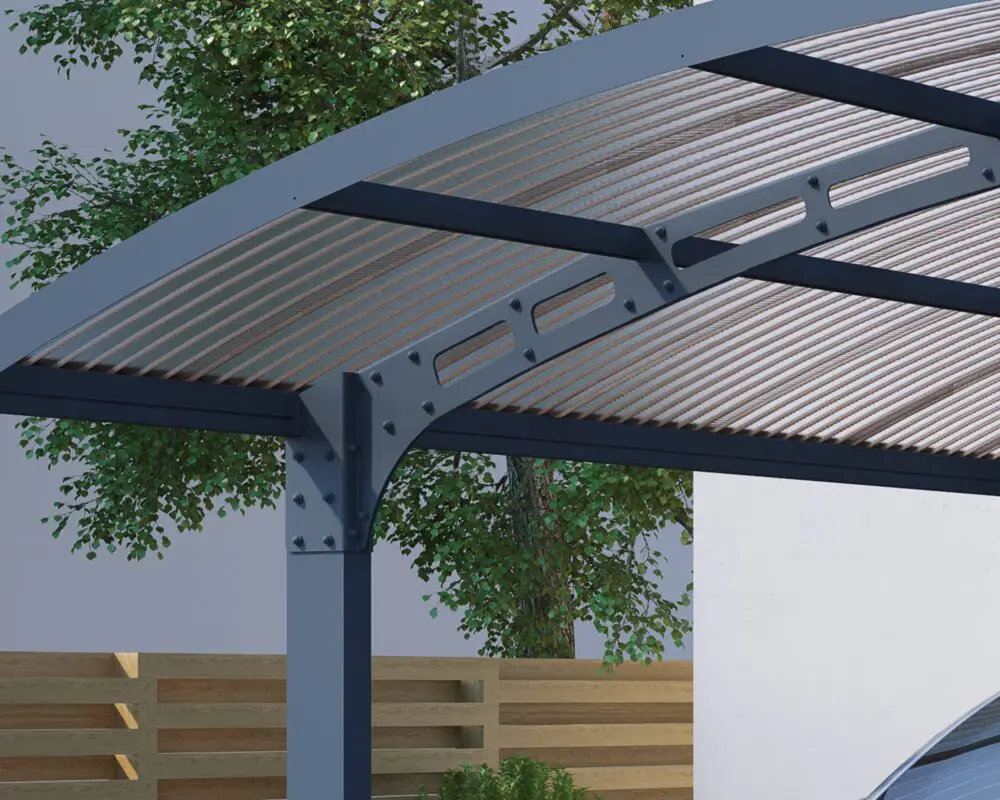

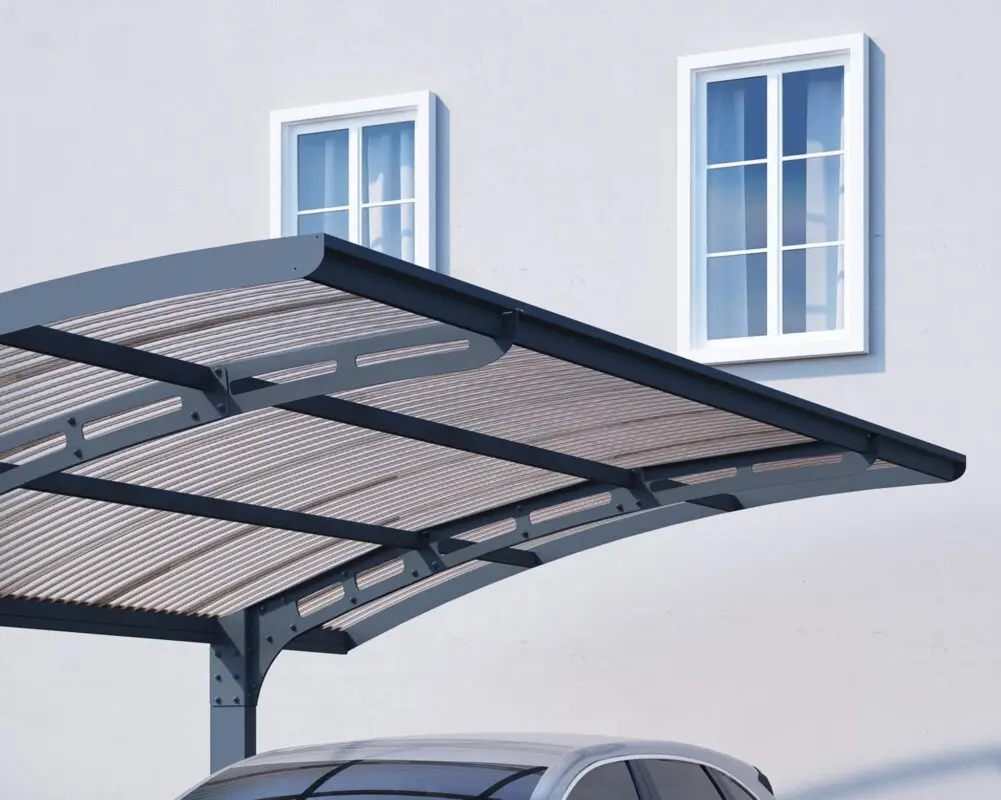

Heavy Duty Frame
• Robust, rust-resistant, powder-coated, ready to assemble pre-drilled profiles made of heavy duty Aluminium & laser cut galvanised steel connectors in anthracite finish
• Weather resistant – designed to withstand severe weather conditions
• Easy Access – 2 post structure

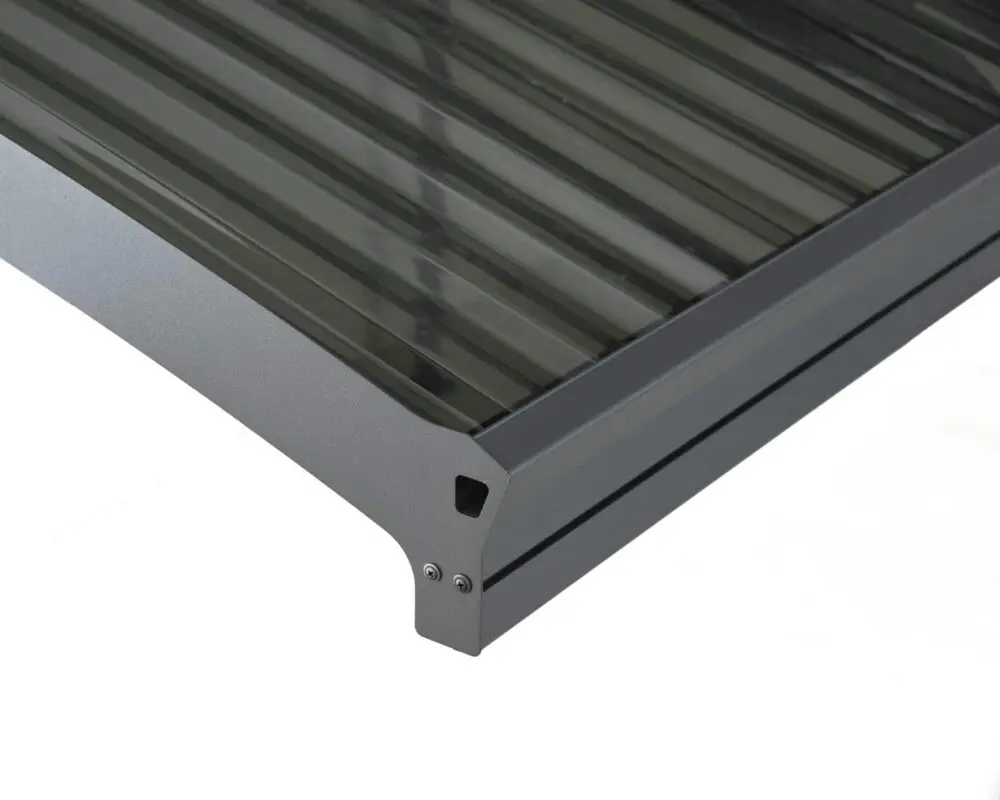

Built-in Gutters
• 2 Built-in gutters channel rainwater

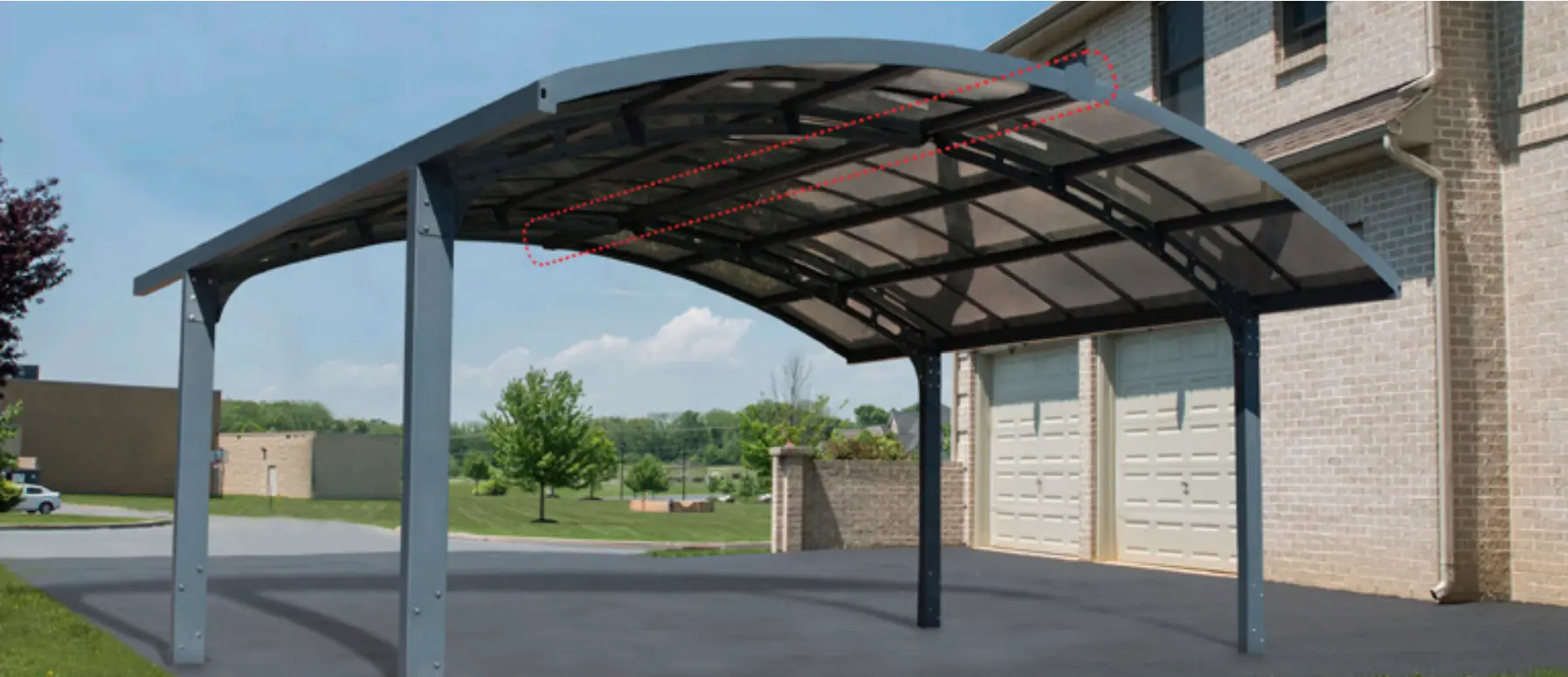

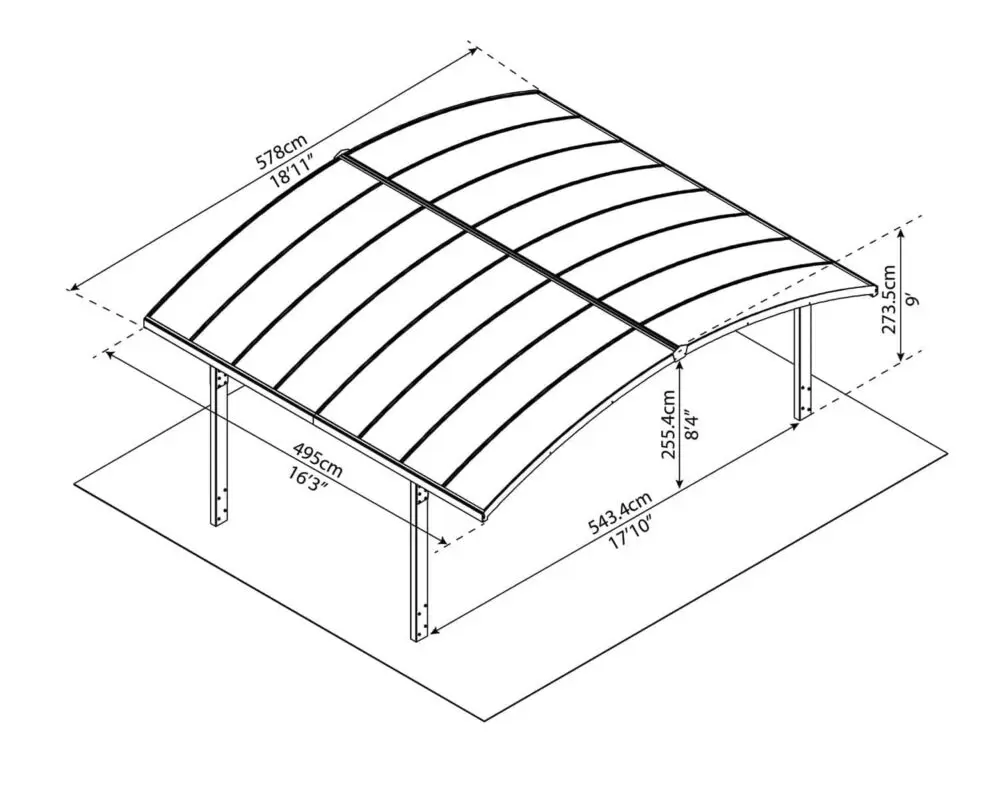

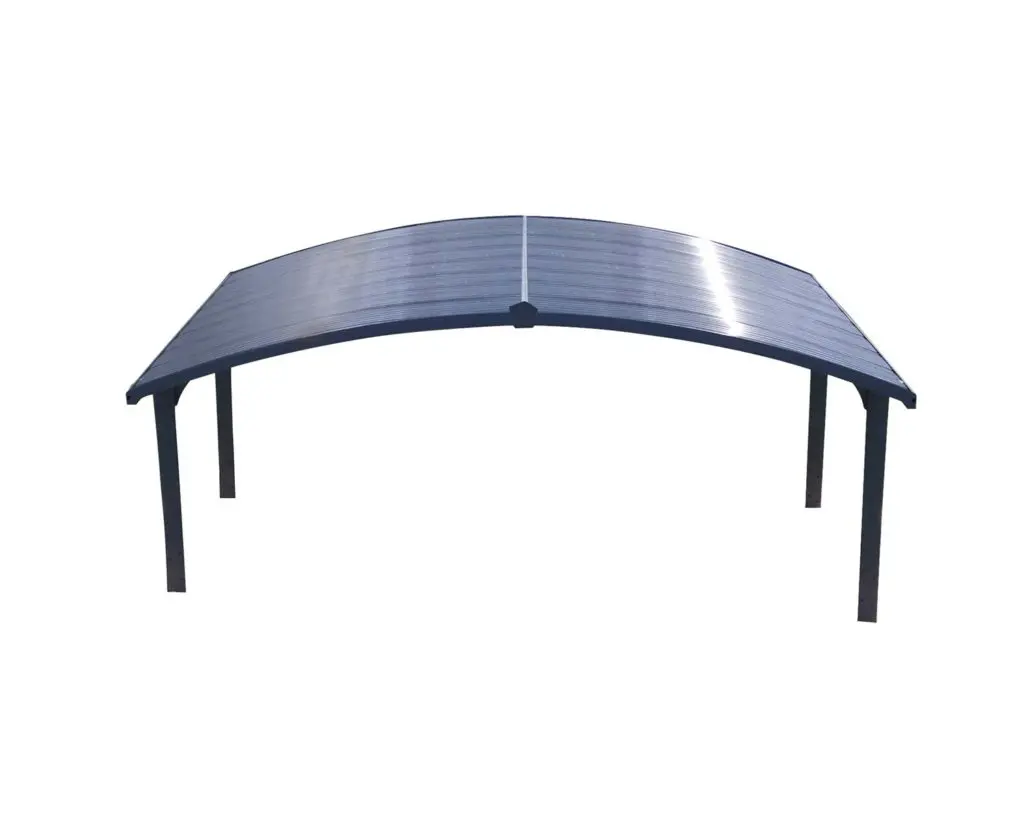

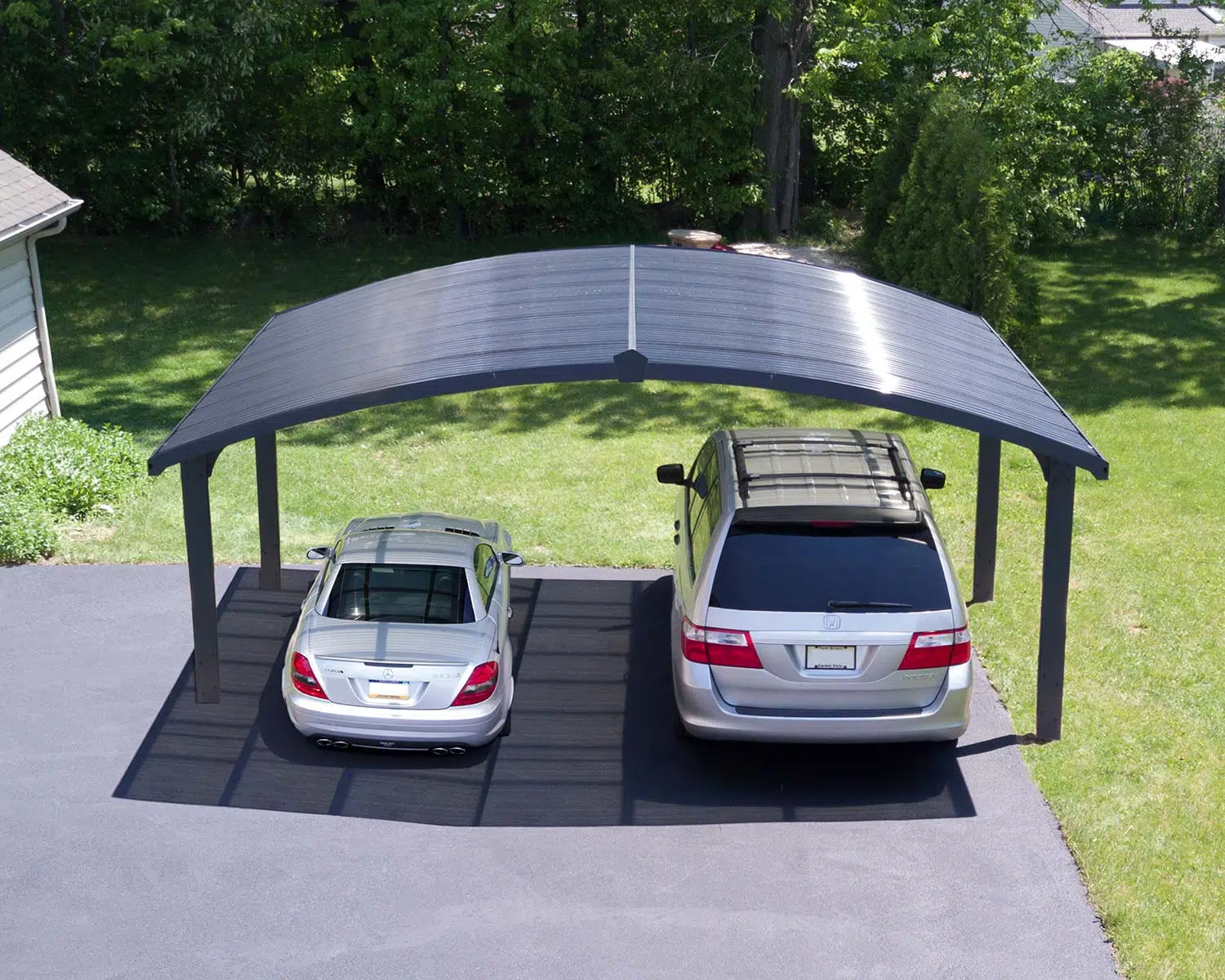

Arch Option:

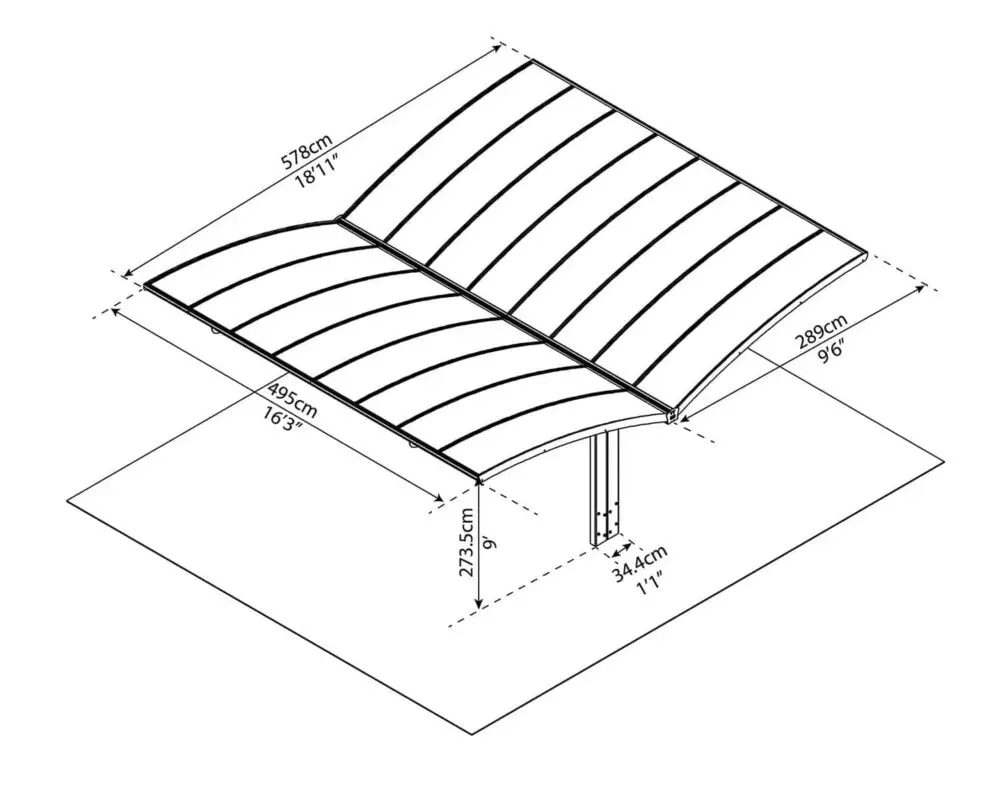

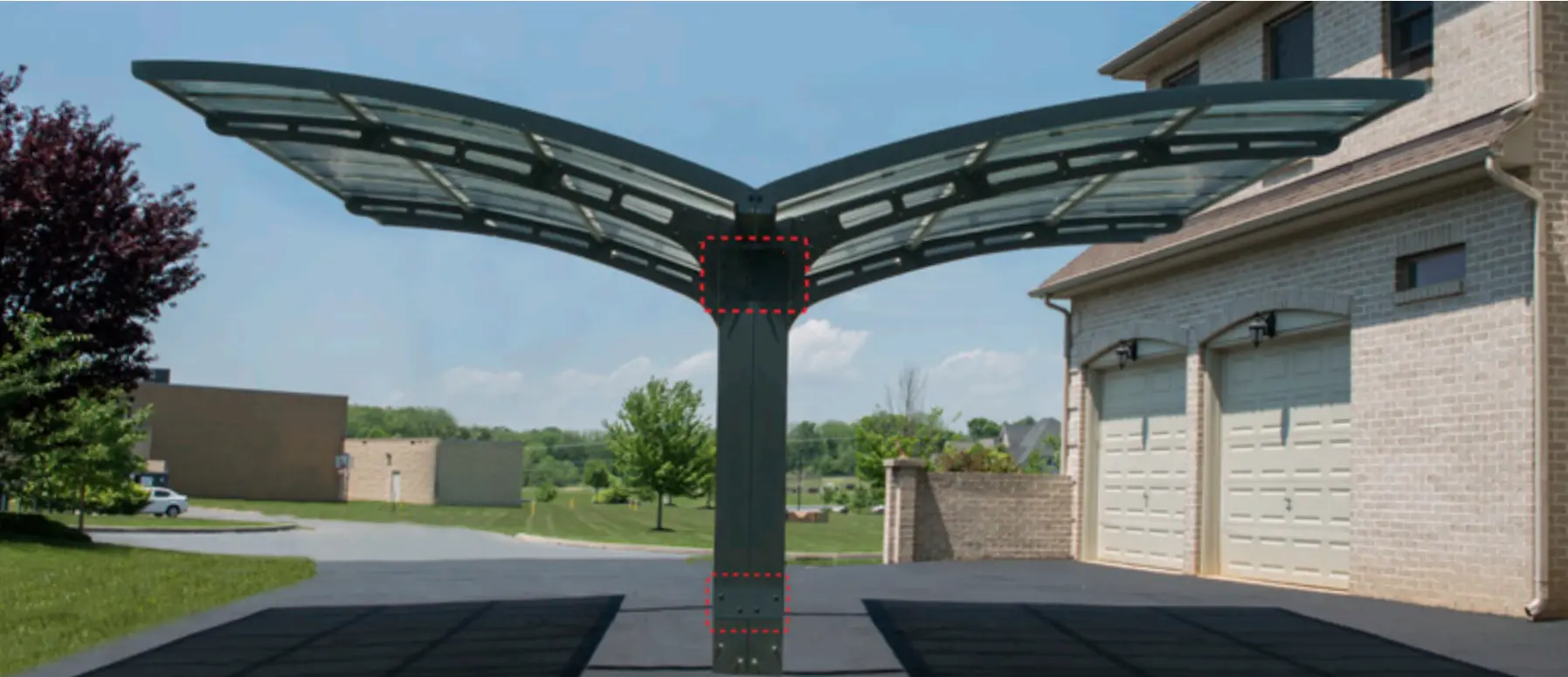

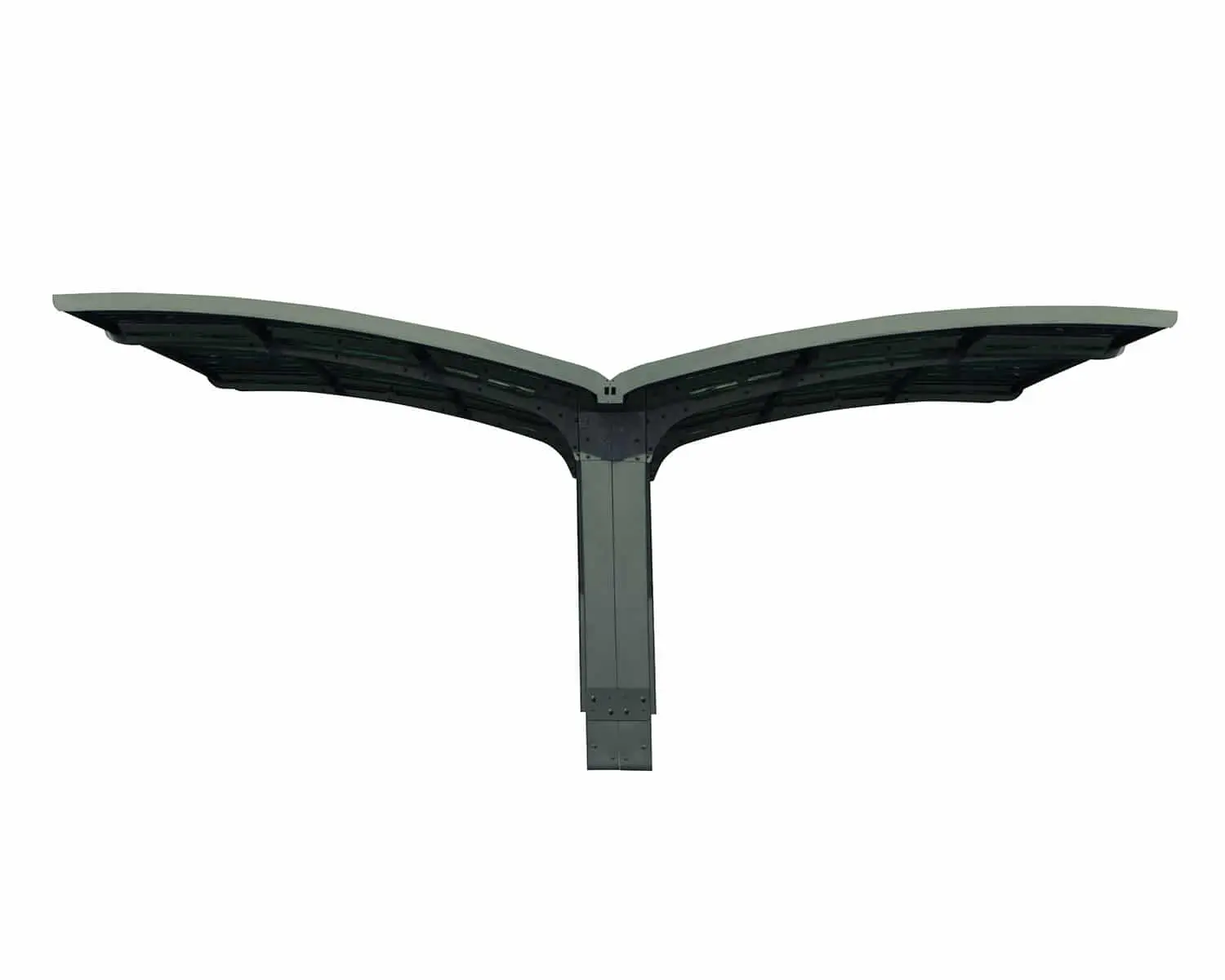

Wings Option:
Carport Dimensions:
| ASSEMBLED | INTERNAL | DOOR DIMENSIONS | EAVES | BASE DIMENSIONS | ||||||
| cm | feet | cm | Inch | cm | Inch | cm | Inch | cm | Inch | |
| WIDTH | 578 | 19' | 543 | 213.8 | N/A | N/A | - | - | N/A | N/A |
| LENGTH | 495 | 16'3" | 495 | 194.9 | - | - | - | - | N/A | N/A |
| HEIGHT | 273.5 | 9' | 255 | 100.4 | N/A | N/A | 200 | 78.7 | - | - |
- COVERING AREA = 28.6M2 / 308.0FT2
- STORAGE AREA = 26.9M2 / 289.3FT2
- PRODUCT VOLUME = 63.9M3 / 2256.7FT3
Packaging Dimensions & Weight
|
No of Boxes: 5 |
Length
|
Width
|
Height
|
Gross Weight |
Packaging Weight |
Net Weight |
| Box 1 | 296 cm | 73 cm | 10.5 cm | 118 kg | 4 kg | 114 kg |
| Box 2 | 296 cm | 73 cm | 10.5 cm | 118 kg | 4 kg | 114 kg |
| Box 3 | 296 cm | 73 cm | 15 cm | 75 kg | 5.2 kg | 69.9 kg |
| Box 4 | 296 cm | 73 cm | 15 cm | 75 kg | 5.2 kg | 69.9 kg |
| Box 5 | 69.5 | 30 | 7 cm | 11.5 kg | 0.5 kg | 11 kg |
| Total Weight: | 397.5 kg | 18.9 kg | 378.8 kg |
Click to view assembly PDF file:

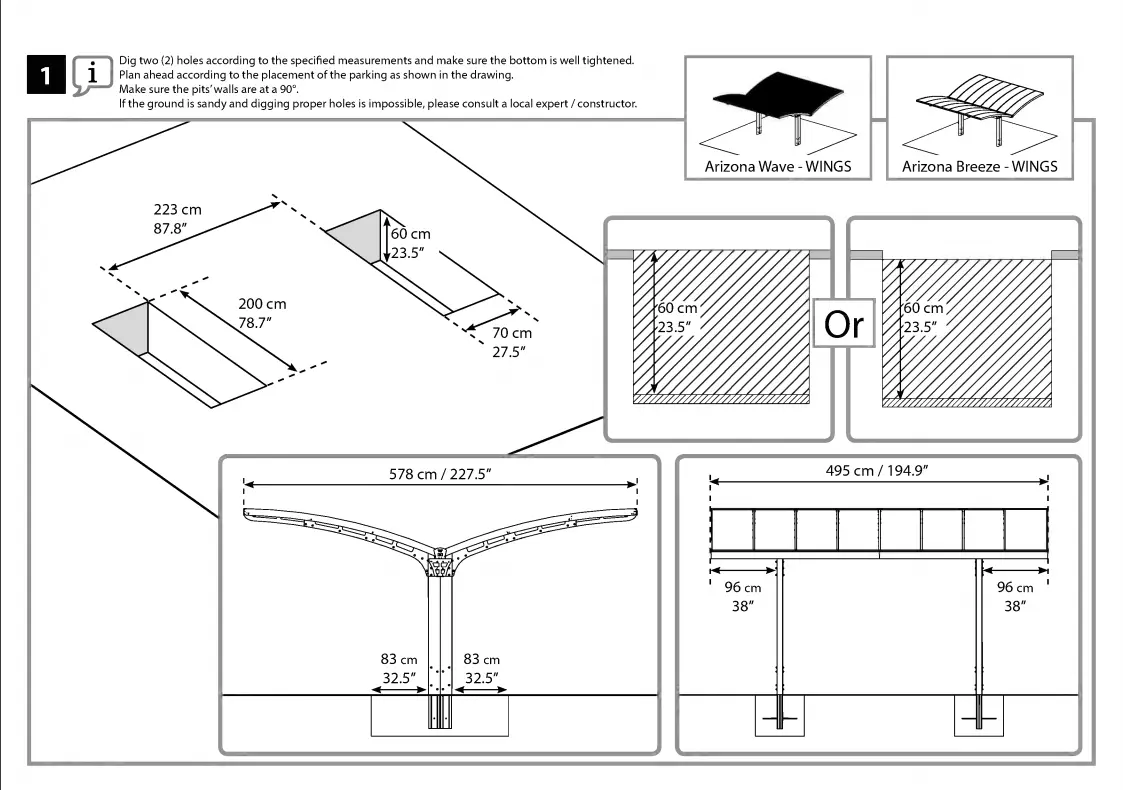

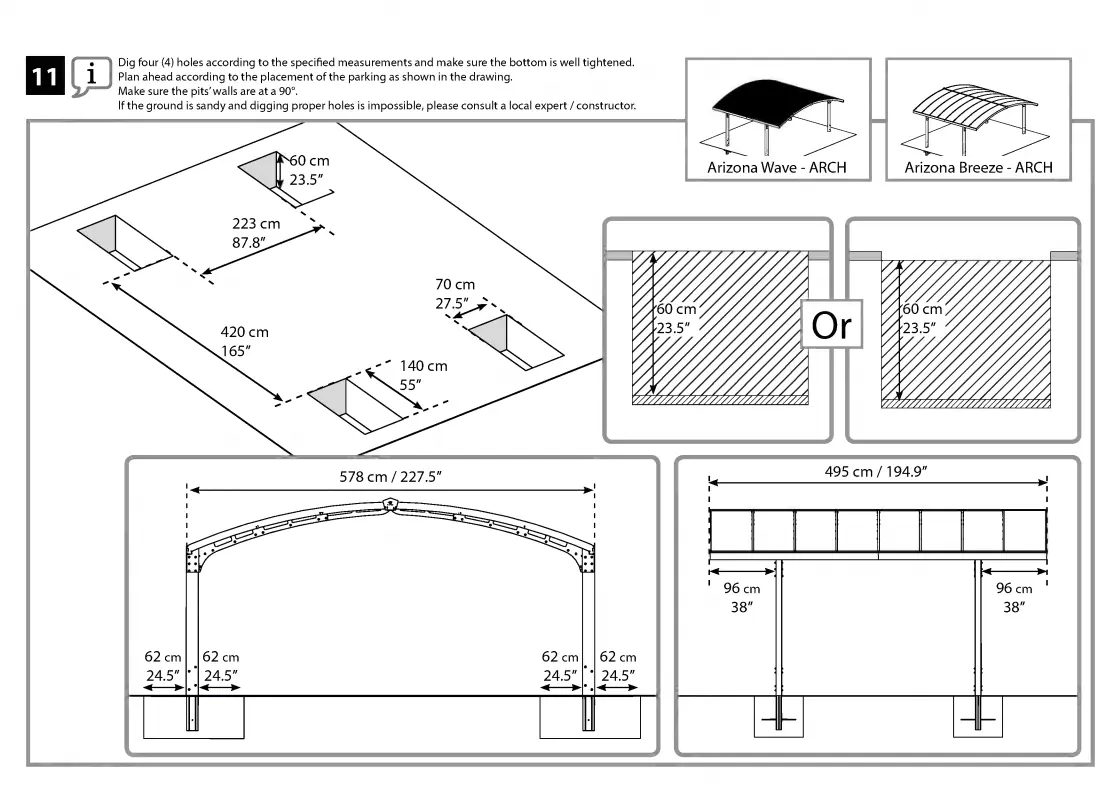

- Arizona Wave 5000 – Assembly Instructions.pdf

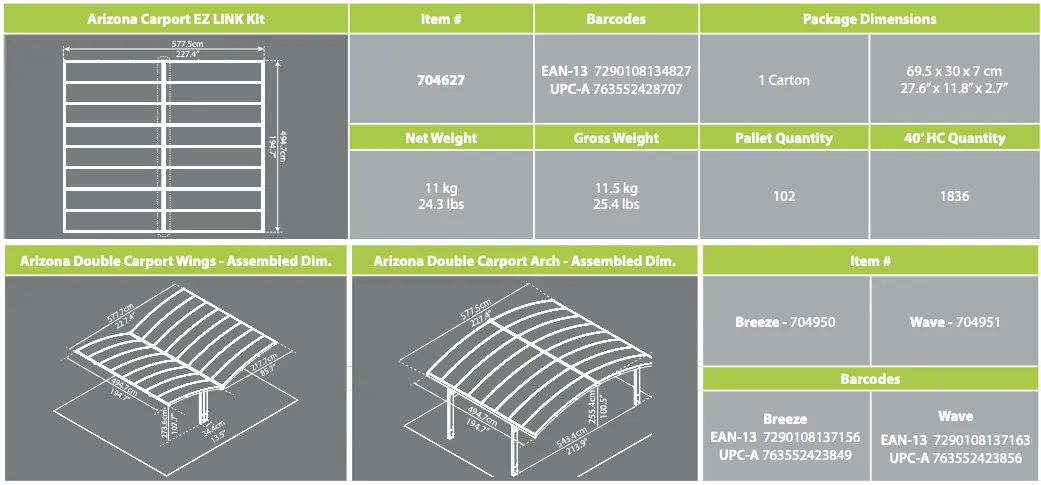

- Double Carport EZ Link Kit – Assembly Instructions.pdf
Click to view certificates PDF file:
| Feature / Carport Type | Palram – Canopia Carport | Wooden Carport | Fabric Carport | Metal Carport |
| Frame Materials | Heavy duty, corrosion resistant Aluminium and galvanised steel | Wood | Fabric and Steel | Steel |
| Covering Type | Twin-Wall Polycarbonate roof panels | Usually sold separately | Polyester – Colour fading and rot over time / Polyethylene fabric – Hail resistant | Usually sold with the following cover options: PVC – Not hail resistant / Tin roof – May dent / Fiberglass – May cause health problems / Aluminium – Hail resistant |
| UV Resistance | All UV resistant – 100% UV protected non yellowing panels and powder coated Aluminium frame | Special expensive coating is needed annually | UV protected | Depend upon powder coating quality |
| Rot Resistance | Yes | None, requires periodic special coating / treatment | Depends on the covering type | Yes |
| Drainage | Integrated gutter and gutter heads | None (may be sold separately) | None | None (may be sold separately) |
| Weather Resistance | Extreme weather resistant – No wear and tear Withstands low temperatures up to -210°F / Withstands high temperatures up to 270°F | Needs periodic treatments | Weather resistant – Good corrosion resistance Does not withstand high temperatures, can become brittle over time | Needs periodic treatments |
| Maintenance | Maintenance free, rinse with water | Requires regular maintenance such as painting, rot treatments, sanding etc. | Requires regular maintenance such as replacing the covering, painting and anti-rust treatment, corrosion and rust appear over time | Requires regular maintenance such as painting and anti-rust treatment, corrosion and rust appear over time |
| Assembly | Quick and simple DIY setup – Assembled with common household tools | Usually requires professional setup | Quick and easy DIY setup | Usually requires professional setup |
| Assembly Kit | Fully equipped assembly kit provided – Anchoring and foot-pads Kit along with all screws and bolts | None (sold separately) | Usually a fully equipped assembly kit provided | Usually a fully equipped assembly kit provided |
| Eco Friendly | 100% recyclable and reusable | Uprooting forests | Does not decompose, becoming an environmental contamination | Harmful paints and materials pervade ground water |
| Warranty | 10 year | Varies | None – 1 Year | Varies |
| Packaging / Transport | Compact & efficient packaging, to be transported in your own pickup | Usually a heavy truck delivery | Compact packaging | Usually a heavy truck delivery |
*****
Some of our products may require building and planning permissions. Please check with your local council for potential building and planning requirements before proceeding with installation. If you require the engineering certificate and calculation for council application please click below.
