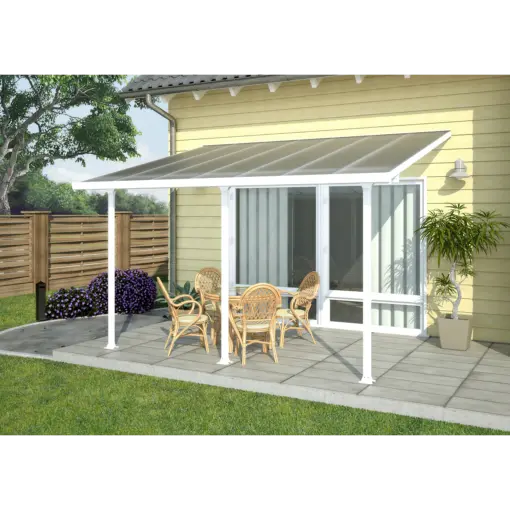

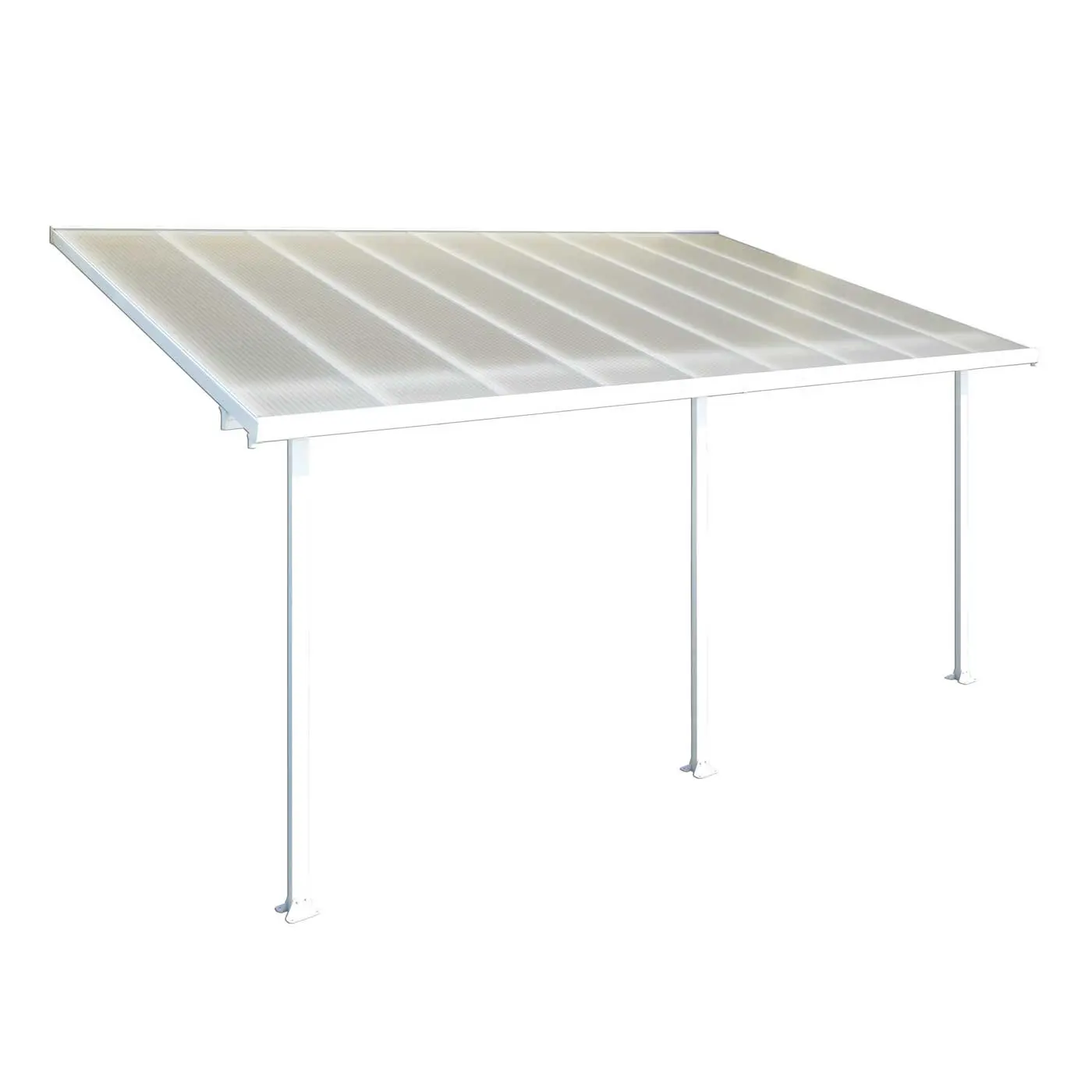

Palram Patio Cover Feria 3x5.4m White Clear

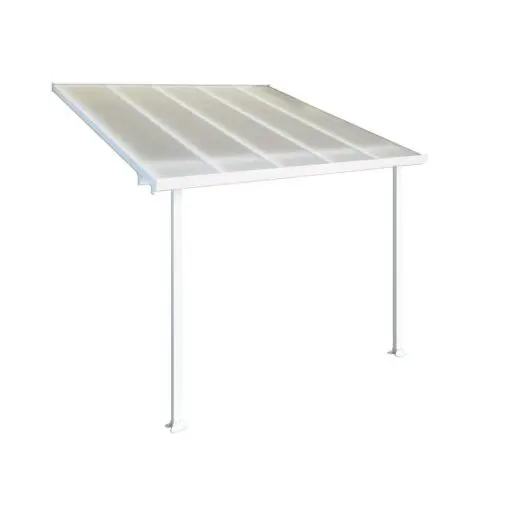

Feria 3 Pergola / Verandah / Patio-Cover

Rated 4.90 out of 5 based on 21 customer ratings

(21 customer reviews)

Enhance your outdoor experience year-round with an aesthetic, multi-purpose roofing solution

Brand: Palram | Canopia

Colour

Size

Clear

Delivery Estimation: 3-10 working days for metro areas
Share This Product:

Description

Feria 3 patio cover enjoy your outdoors year-round in a stylishly crafted and sturdy addition to your outside living space. Partake of family get-togethers and cookouts without fearing the fickle weather will ruin your fun. The Feria is an aesthetic, multi-purpose, maintenance free roofing solution allowing for various outdoor uses such as a pergola, carport, sun lounge etc. It was designed to be simply assembled by 2 people; it requires no experience, no special skills and no special tools. The Feria provides your family with an elegant, sturdy and rust-free retreat for years to come.

Polycarbonate Panels

• Virtually unbreakable 8 mm multiwall polycarbonate roof panels offer high impact, shatter resistance and protection from inclement weather
• Maintain their integrity, provide complete UV blockage, and are 100% UV protected; they do not discolor, fracture or become brittle over time
• Ready to assemble pre-cut panels
• Click N’ lock roof connector system allows a safe, quick and easy assembly; it locks the glazing between the structure rods, preventing water from seeping in

Aluminium Structure

• Rust-resistant powder-coated frame made of heavy duty aluminium and laser cut galvanised steel connectors
• Ready to assemble pre-drilled profiles

Adjustable and flexible fixing method

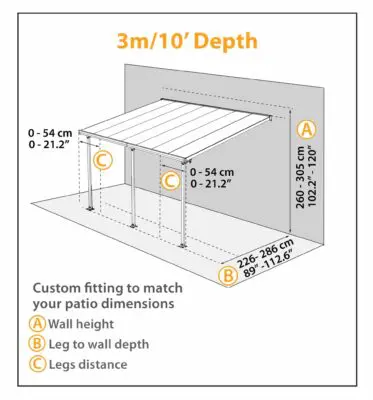

• The Feria is a high performance structure, with flexible positioning poles enabling you to set your required height at the wall connection, the distance from the house and between the poles at the front.
• Wall mounting plate is adjustable to meet your desired height between 260-305 cm (102.4 in. – 120 in.); allowing a flexible positioning of the roof slope (-13˚ – + 17˚) enabling snow and rain to slide off (A)

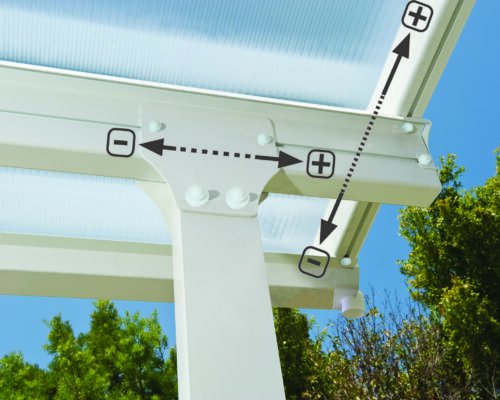

• Adjustable poles allow for ideal positioning: left to right 0-54 cm (0 in. – 21.3 in.) and front to back 226-286 cm (89 in. – 112.6 in.) (B + C)

Anchoring

• Anchoring included – Secure the patio cover to the surface of your choosing to make the most of your sturdy structure, increase its stability and improve its weather resistance
• Sturdy 8×4 cm (3.15 in. x 1.57 in.) aluminum poles

Gutter & gutter heads

• Integrated gutter and adjustable gutter heads allow you to easily channel and collect rainwater for a sustainable irrigation system

DIMENSIONS

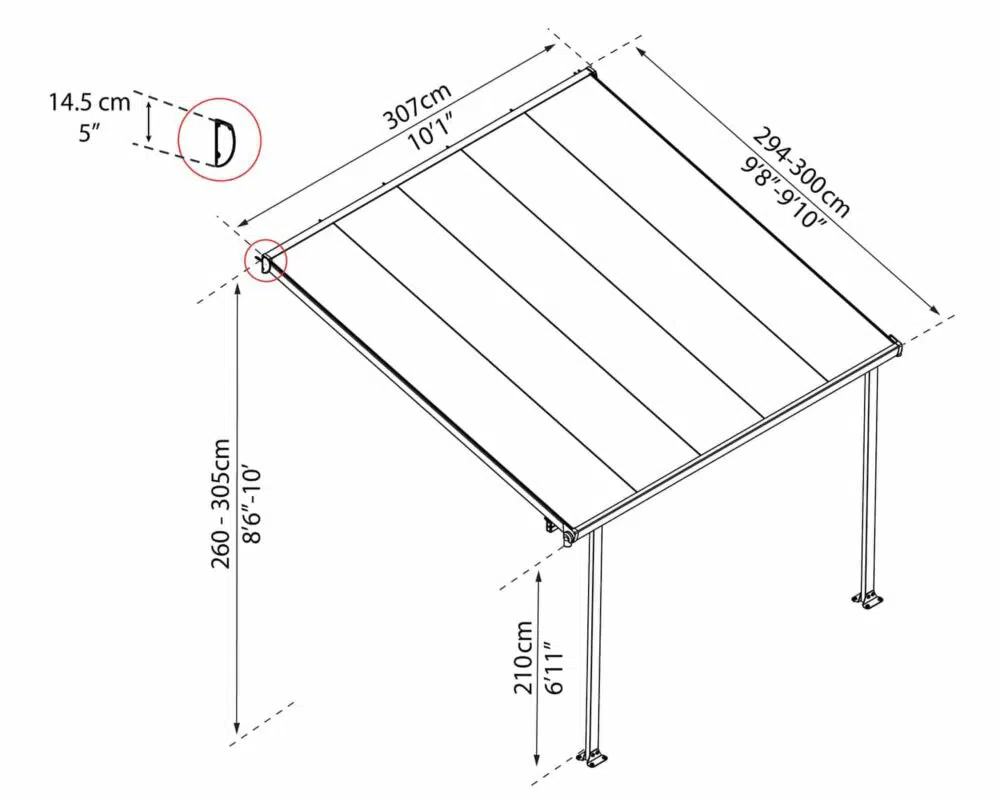

Feria 3 3x3m

Feria 3 Dimensions:

	ASSEMBLED		INTERNAL		DOOR DIMENSIONS		EAVES		BASE DIMENSIONS
	cm	feet	cm	Inch	cm	Inch	cm	Inch	cm	Inch
WIDTH	294-300	9'8"-9'10"	N/A	N/A	N/A	N/A	-	-	N/A	N/A
LENGTH	307	10'1"	N/A	N/A	-	-	-	-	N/A	N/A
HEIGHT	260-305	8'6"-10'	N/A	N/A	N/A	N/A	210	82.7	-	-

COVERING AREA = 9M² / 97.2FT²
STORAGE AREA = N/A / N/A
PRODUCT VOLUME = N/A / N/A

Packaging Dimensions & Weight

No of Boxes:

Length

Width

Height

Gross

Weight

Packaging

Weight

Net

Weight

Box 1

309 cm

65 cm

17.5 cm

60.3 kg

5.8 kg

54.5 kg

Total Weight:

60.3 kg

5.8 kg

54.5 kg

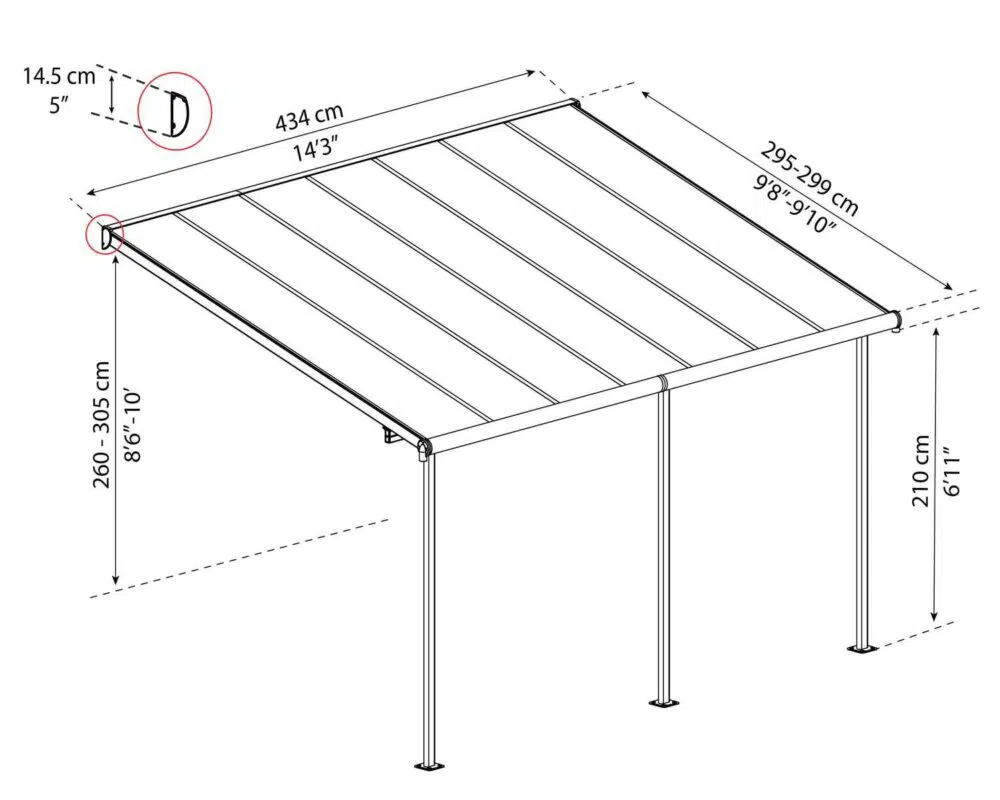

Feria 3 3x4.25m

Feria 3 Dimensions:

	ASSEMBLED		INTERNAL		DOOR DIMENSIONS		EAVES		BASE DIMENSIONS
	cm	feet	cm	Inch	cm	Inch	cm	Inch	cm	Inch
WIDTH	294-300	9'8"-9'10"	N/A	N/A	N/A	N/A	-	-	N/A	N/A
LENGTH	425	13'11"	N/A	N/A	-	-	-	-	N/A	N/A
HEIGHT	260-305	8'6"-10'	N/A	N/A	N/A	N/A	210	82.7	-	-

COVERING AREA = 12.5M² / 134.5FT²
STORAGE AREA = N/A / N/A
PRODUCT VOLUME = N/A / N/A

Packaging Dimensions & Weight

No of Boxes:

Length

Width

Height

Gross

Weight

Packaging

Weight

Net

Weight

Box 1

309 cm

65 cm

22.5 cm

83 kg

5.8 kg

77.2 kg

Total Weight:

83 kg

5.8 kg

77.2 kg

Feria 3 3x5.46m

Feria 3 Dimensions:

	ASSEMBLED		INTERNAL		DOOR DIMENSIONS		EAVES		BASE DIMENSIONS
	cm	feet	cm	Inch	cm	Inch	cm	Inch	cm	Inch
WIDTH	294-300	9'8"-9'10"	N/A	N/A	N/A	N/A	-	-	N/A	N/A
LENGTH	546	17'11"	N/A	N/A	-	-	-	-	N/A	N/A
HEIGHT	260-305	8'6"-10'	N/A	N/A	N/A	N/A	210	82.7	-	-

COVERING AREA = 16.1M² / 173FT²
STORAGE AREA = N/A / N/A
PRODUCT VOLUME = N/A / N/A

Packaging Dimensions & Weight

No of Boxes:

Length

Width

Height

Gross

Weight

Packaging

Weight

Net

Weight

Box 1

309 cm

65 cm

26.5 cm

100 kg

5.8 kg

94.2 kg

Total Weight:

100 kg

5.8 kg

94.2 kg

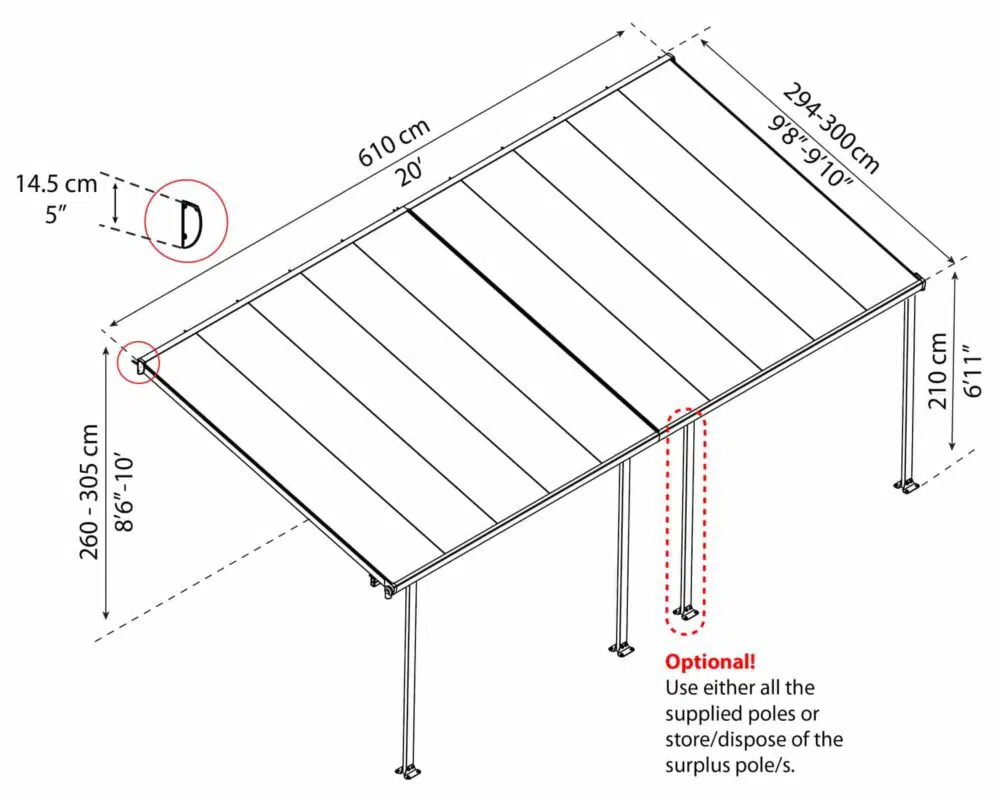

Feria 3 3x6.1m

Feria 3 Dimensions:

	ASSEMBLED		INTERNAL		DOOR DIMENSIONS		EAVES		BASE DIMENSIONS
	cm	feet	cm	Inch	cm	Inch	cm	Inch	cm	Inch
WIDTH	294-300	9'8"-9'10"	N/A	N/A	N/A	N/A	-	-	N/A	N/A
LENGTH	610	20'	N/A	N/A	-	-	-	-	N/A	N/A
HEIGHT	260-305	8'6"-10'	N/A	N/A	N/A	N/A	210	82.7	-	-

COVERING AREA = 18M² / 193FT²
STORAGE AREA = N/A / N/A
PRODUCT VOLUME = N/A / N/A

Packaging Dimensions & Weight

No of Boxes: 3	Length	Width	Height	Gross Weight	Packaging Weight	Net Weight
Box 1	309 cm	65 cm	17.5 cm	60.3 kg	5.8 kg	54.5 kg
Box 2	309 cm	65 cm	26.5 cm	60.3 kg	5.8 kg	54.5 kg
Box 3	48.5 cm	11.5 cm	9.5 cm	3.2 kg	0.1 kg	3.1 kg
Total Weight:				123.8 kg	11.7 kg	112.1 kg

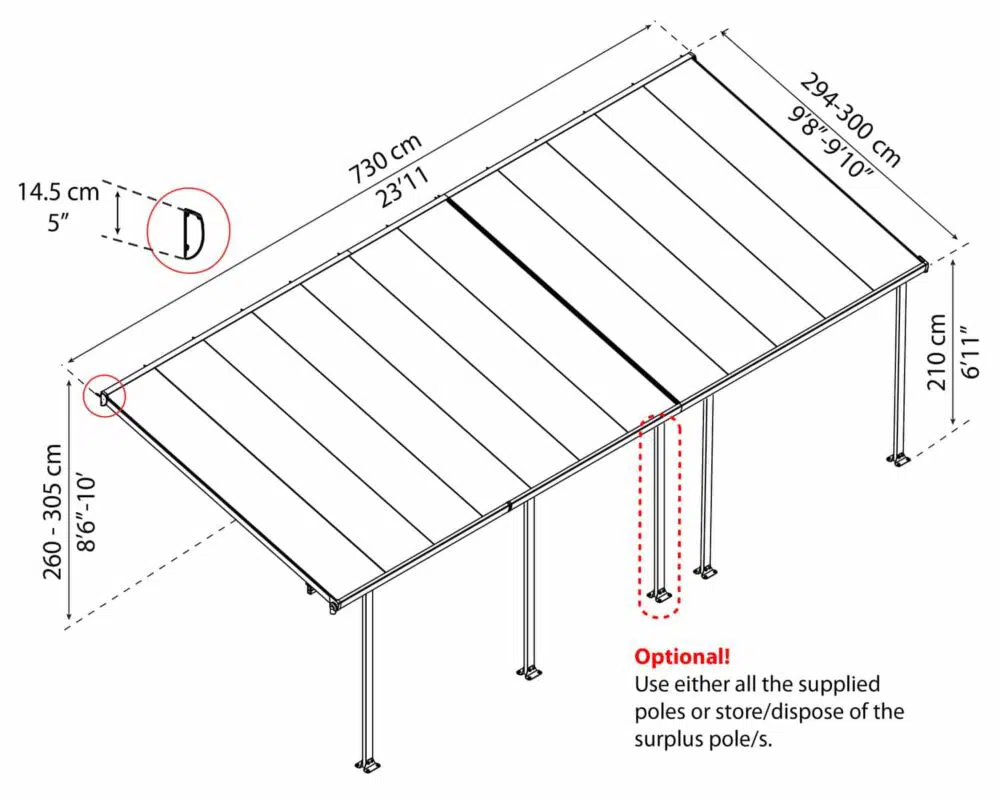

Feria 3 3x7.3m

Feria 3 Dimensions:

	ASSEMBLED		INTERNAL		DOOR DIMENSIONS		EAVES		BASE DIMENSIONS
	cm	feet	cm	Inch	cm	Inch	cm	Inch	cm	Inch
WIDTH	294-300	9'8"-9'10"	N/A	N/A	N/A	N/A	-	-	N/A	N/A
LENGTH	730	23'11"	N/A	N/A	-	-	-	-	N/A	N/A
HEIGHT	260-305	8'6"-10'	N/A	N/A	N/A	N/A	210	82.7	-	-

COVERING AREA = 21.5M² / 231FT²
STORAGE AREA = N/A / N/A
PRODUCT VOLUME = N/A / N/A

Packaging Dimensions & Weight

No of Boxes: 3	Length	Width	Height	Gross Weight	Packaging Weight	Net Weight
Box 1	309 cm	65 cm	17.5 cm	60.3 kg	5.8 kg	54.5 kg
Box 2	309 cm	65 cm	22.5 cm	83 kg	5.8 kg	77.2 kg
Box 3	48.5 cm	11.5 cm	9.5 cm	3.2 kg	0.1 kg	3.1 kg
Total Weight:				146.5 kg	11.7 kg	134.8 kg

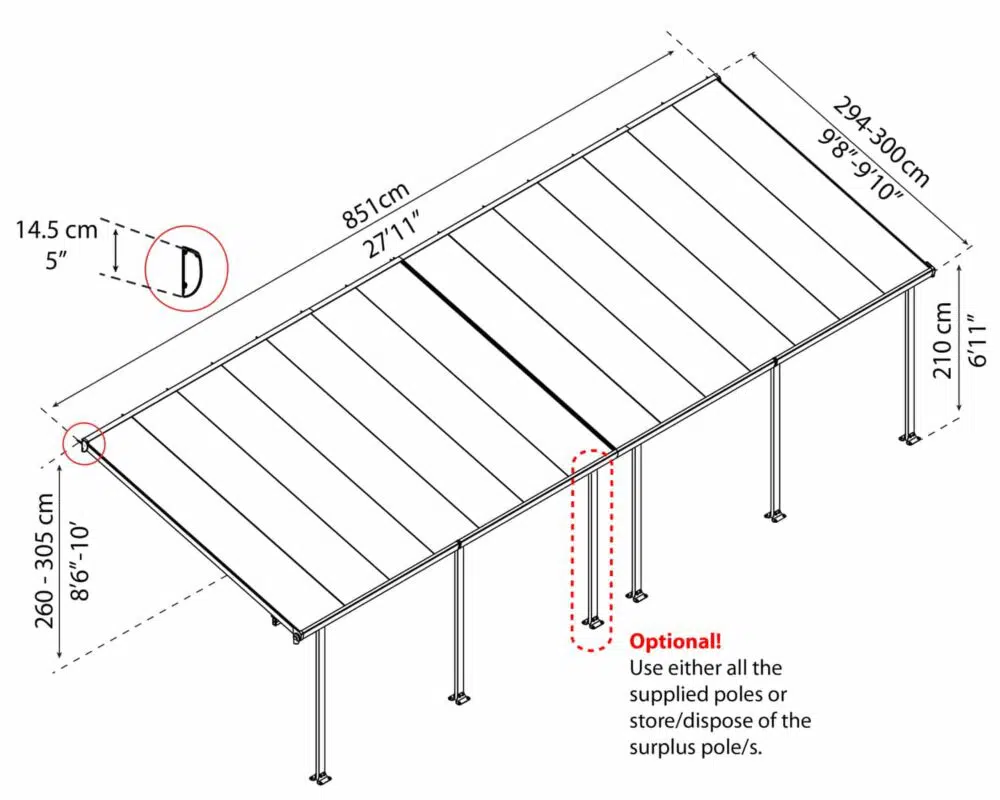

Feria 3 3x8.5m

Feria 3 Dimensions:

	ASSEMBLED		INTERNAL		DOOR DIMENSIONS		EAVES		BASE DIMENSIONS
	cm	feet	cm	Inch	cm	Inch	cm	Inch	cm	Inch
WIDTH	294	9'8"	N/A	N/A	N/A	N/A	-	-	N/A	N/A
LENGTH	851.0	27'11"	N/A	N/A	-	-	-	-	N/A	N/A
HEIGHT	260-305	8'6"-10'	N/A	N/A	N/A	N/A	210.0	82.7	-	-

COVERING AREA = 25.0M² / 269.3FT²
STORAGE AREA = N/A / N/A
PRODUCT VOLUME = N/A / N/A

Packaging Dimensions & Weight

No of Boxes: 3	Length	Width	Height	Gross Weight	Packaging Weight	Net Weight
Box 1	309 cm	65 cm	22.5 cm	83 kg	5.8 kg	77.2 kg
Box 2	309 cm	65 cm	22.5 cm	83 kg	5.8 kg	77.2 kg
Box 3	48 cm	11.5 cm	9.5 cm	3.2 kg	0.1 kg	3.1 kg
Total Weight:				169.2 kg	211.7 kg	157.5 kg

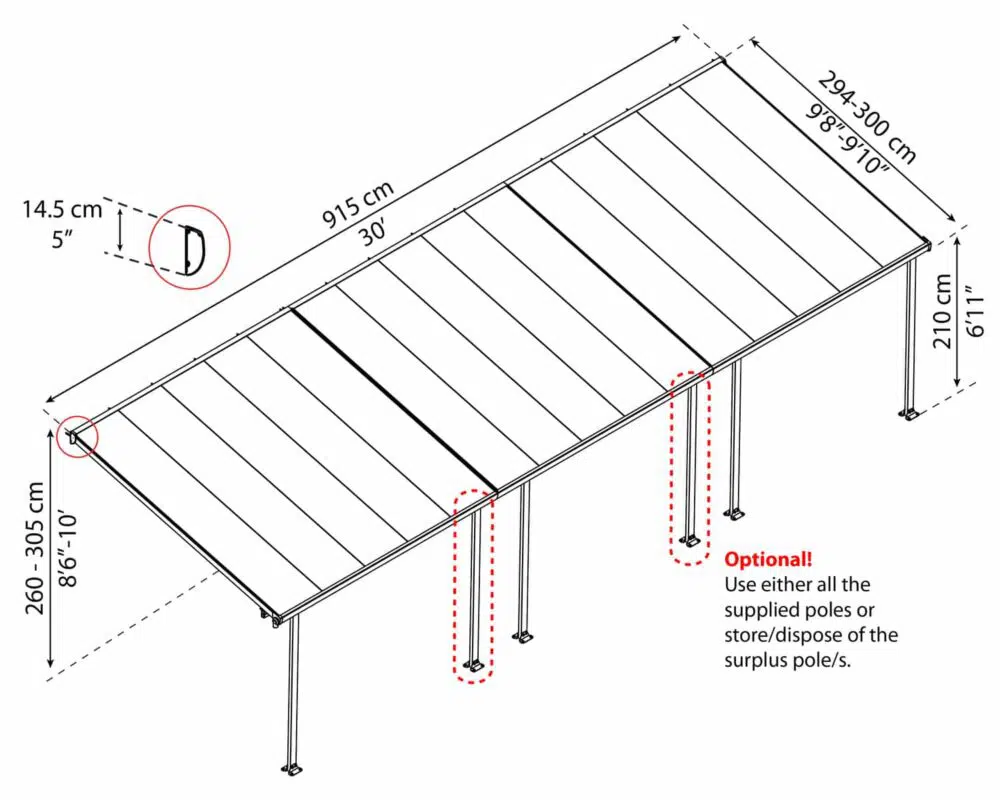

Feria 3 3x9.15m

Feria 3 Dimensions:

	ASSEMBLED		INTERNAL		DOOR DIMENSIONS		EAVES		BASE DIMENSIONS
	cm	feet	cm	Inch	cm	Inch	cm	Inch	cm	Inch
WIDTH	294	9'8"	N/A	N/A	N/A	N/A	-	-	N/A	N/A
LENGTH	915.0	30'	N/A	N/A	-	-	-	-	N/A	N/A
HEIGHT	260-305	8'6"-10'	N/A	N/A	N/A	N/A	210.0	82.7	-	-

COVERING AREA = 26.9M² / 289.6FT²
STORAGE AREA = N/A / N/A
PRODUCT VOLUME = N/A / N/A

Packaging Dimensions & Weight

No of Boxes: 3	Length	Width	Height	Gross Weight	Packaging Weight	Net Weight
Box 1	309 cm	65 cm	17.5 cm	61 kg	5.8 kg	55.2 kg
Box 2	309 cm	65 cm	17.5 cm	61 kg	5.8 kg	55.2 kg
Box 3	309 cm	65 cm	17.5 cm	61 kg	5.8 kg	55.2 kg
Box 4	48 cm	11.5 cm	9.5 cm	3.2 kg	0.1 kg	3.1 kg
Box 5	48 cm	11.5 cm	9.5 cm	3.2 kg	0.1 kg	3.1 kg
Total Weight:				189.4 kg	17.6 kg	171.8 kg

Feria 3 3x9.7m

Feria 3 Dimensions:

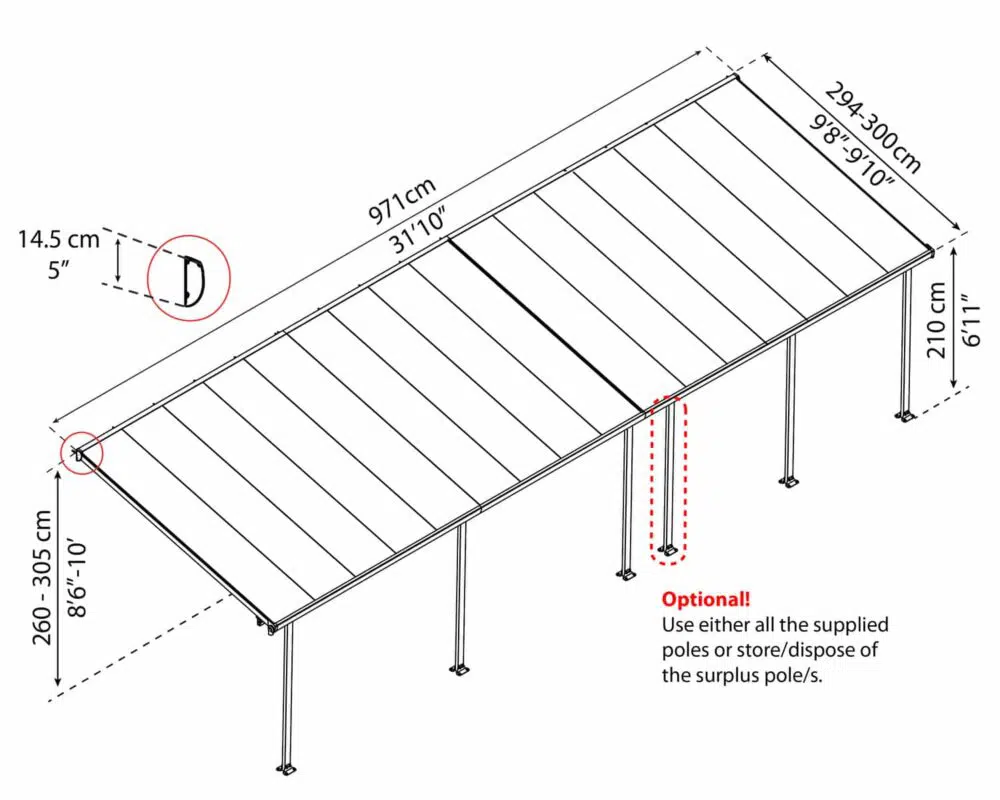

	ASSEMBLED		INTERNAL		DOOR DIMENSIONS		EAVES		BASE DIMENSIONS
	cm	feet	cm	Inch	cm	Inch	cm	Inch	cm	Inch
WIDTH	294	9'8"	N/A	N/A	N/A	N/A	-	-	N/A	N/A
LENGTH	971.0	31'10"	N/A	N/A	-	-	-	-	N/A	N/A
HEIGHT	260-305	8'6"-10'	N/A	N/A	N/A	N/A	210.0	82.7	-	-

COVERING AREA = 28.5M² / 307.3FT²
STORAGE AREA = N/A / N/A
PRODUCT VOLUME = N/A / N/A

Packaging Dimensions & Weight

No of Boxes: 3	Length	Width	Height	Gross Weight	Packaging Weight	Net Weight
Box 1	309 cm	65 cm	22.5 cm	83 kg	5.8 kg	77.2 kg
Box 2	309 cm	65 cm	26.5 cm	100 kg	5.8 kg	94.2 kg
Box 3	48 cm	11.5 cm	9.5 cm	3.2 kg	0.1 kg	3.1 kg
Total Weight:				186.2 kg	11.7 kg	174.5 kg

Specifications

WIND RESISTANCE – 120km/hr | 75ml/hr
SNOW LOAD – 150kg/m² | 31lbs/ft²
LIGHT TRANSMISSION: Clear – 65%, White – 25%
POLYCARBONATE PANEL – 8mm

ASSEMBLY

Click to view assembly file:

EZ Link Kit by Palram Canopia Patio Covers Accessories – Assembly Instructions

WARRANTY

Click to view certificates PDF file:

COMPARE PATIO COVERS

Feature / Patio Cover Type	Palram – Canopia Patio Cover	Wooden Patio Cover	Metal Patio Cover
Frame Materials	Heavy duty, corrosion resistant Aluminium and galvanised steel	Wood	Steel
Covering Type	twin-wall or multi-wall Polycarbonate roof panels	Usually sold separately	Usually sold with the following cover options: PVC – Not hail resistant / Tin roof – May dent / Fiberglass – May cause health problems / Aluminum – Hail resistant
Light Transmission	Panels transmit diffused sunlight yet offer shade	No light transmission (only with fiberglass)	No light transmission (only with Polycarbonate)
UV Resistance	All UV resistant – 100% UV protected non yellowing panels and powder coated Aluminium frame	Special expensive coating is needed annually	Depend upon powder coating quality
Weather Resistance	Extreme weather resistant – No wear and tear Withstands low temperatures up to -210°F / Withstands high temperatures up to 270°F	Needs periodic treatments	Needs periodic treatments
Rot Resistance	Yes	None, requires periodic special coating / treatment	Yes
Drainage	Integrated gutter and adjustable gutter heads	None (may be sold separately)	None (may be sold separately)
Maintenance	Maintenance free, rinse with water	Requires regular maintenance such as painting, rot treatments, sanding etc.	Requires regular maintenance such as painting and anti-rust treatment, corrosion and rust appear over time
Assembly	Quick and simple DIY setup – Assembled with common household tools	Usually requires professional setup	Usually requires professional setup
Assembly Kit	Fully equipped assembly kit provided – Anchoring and foot-pads Kit along with all screws and bolts	None (sold separately)	Usually a fully equipped assembly kit is provided
Eco Friendly	100% recyclable and reusable	Uprooting forests	Harmful paints and materials pervade ground water
Warranty	10 year	Varies	Varies
Packaging / Transport	Compact & efficient packaging, to be transported in your own pickup	Usually a heavy truck delivery	Usually a heavy truck delivery

FAQ

If your question does not appear below, please contact us through the Contact Us page.

Does the Feria 3 kit come with screws/ bolts to attach it to brick wall?

Yes the Feria is supplied with the bolts and anchor suitable for solid brick or concrete walls.

Does the Feria 3 kit come with screws/ bolt to secure the poles to a concrete slab?

Yes the Feria pergola kit includes the screws and anchoring to secure it to a concrete slab.

Can the Feria 3 be installed at a lower height clearance from 260cm?

No, unfortunately the minimum height required as specified by the manufacturer is 260cm. We do however have the Stockholm pergola that has a minimum wall height required clearance of 256cm. Please see link below. https://www.tiptopyards.com.au/product/pergola/stockholm-patio-cover-verandah-pergola/

Can two or more kits of the Feria pergola be joined together to achieve a longer pergola?

Yes, the Feria is a modular kit and can be extended by connecting few kits together to achieve the desired length using the pergola link kit, please see link below. https://www.tiptopyards.com.au/product/pergola/link-kit-pergola-veranda-patio-cover/

What is the difference between Feria and Stockholm? Is that just the size and pitch? or also the quality of the product?

The main differences between the Feria and Stockholm patio covers are the polycarbonate panels, the size and design. The Stockholm has 4mm thick single layer polycarbonate roof panels and the Feria has 8 mm multi-wall polycarbonate roof panels, the Stockholm pergola depth is 3.4m compare to the Feria that have 2 option of 3m and 4m depth. In addition the Stockholm design is more heavy duty with fewer poles that have a built in gutter down pipe inside and have a more modern look compare to the Feria pergola.

What are the differences between the Feria pergola and the Sierra pergola?

The main difference between the Sierra and Feria patio covers is the polycarbonate used for the roof panels, the Feria has an 8mm mulit-wall click in polycarbonate in clear or white colour while the Sierra has a 6mm twin wall slide polycarbonate available in clear for the white structure or bronze shaded for the grey structure, there are also other small difference in the design manly in the gutter style.

Can the Feria patio cover be installed on timber deck?

Yes the Feria patio cover can be installed on a deck.

What is the wind rating for the Feria pergola?

The wind resistance of the Feria 3 pergola is up to 120km/h, the Feria pergola have been certified by engineers in Australia and have a wind rating of non-cyclonic N2. In general all Canopia by Palram kits are suitable for use in most of Australia excluding areas that require cyclonic wind ratings such as North QLD.
