Dallas Gazebo | Gazebo Kit
Dallas gazebo – relax in style, add usability and appeal to your outdoor living space; enjoy the fresh air and view of your garden year-round
Brand: Canopia by Palram
PLEASE NOTE: ETA for new stock arrival of Dallas 4900 & 6100 is March 2022
Delivery Estimation: 3-10 working days for metro areas
Share This Product:
| DESCRIPTION | DIMENSIONS | ASSEMBLY | WARRANTY | COMPARE GAZEBOS | Reviews (1) |

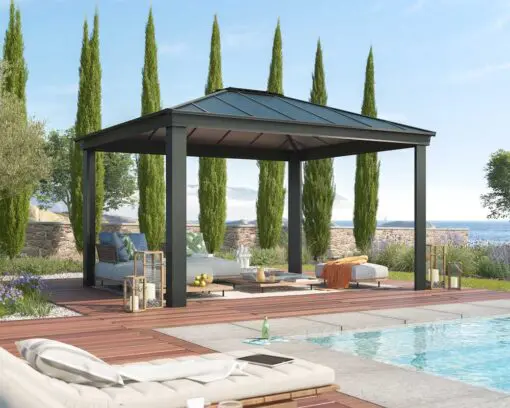

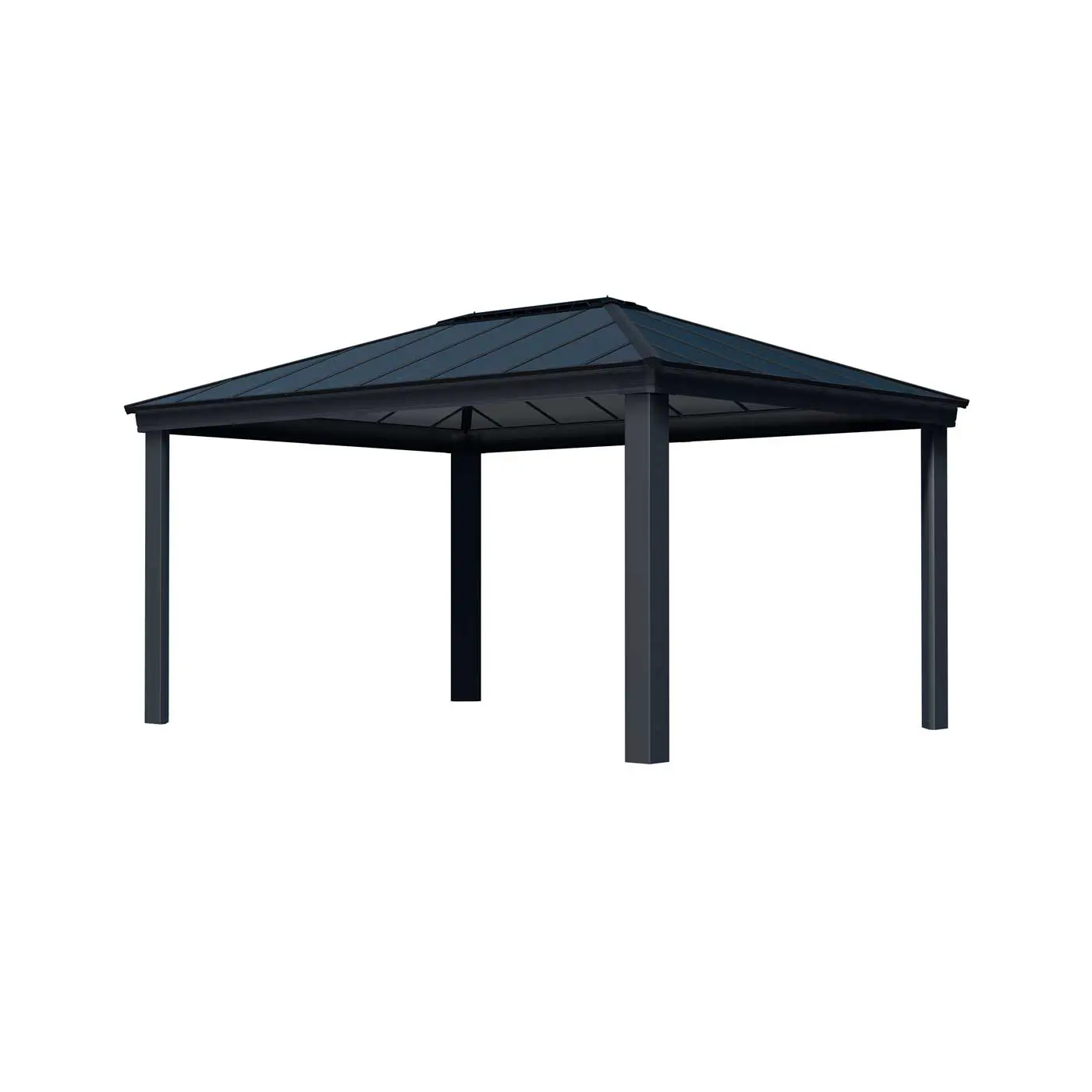

Dallas – Garden Gazebo
- Robust, rust-resistant powder-coated frame made Massive Aluminum structure with ultra-resilient roofing system
- Virtually unbreakable, 100% UV protected, Grey opaque twin-wall polycarbonate panels are high impact and shatter resistant
- Waterproof – withstands harsh weather conditions – no need to remove panels during winter season
- 4 person DIY assembly – ready to assemble pre-drilled profiles, pre-cut panels
- Rectangular structure can be relocated
- Maintenance free design
- 10 Years Warranty
- Structure can be fitted with both curtains and netting (sold separately)

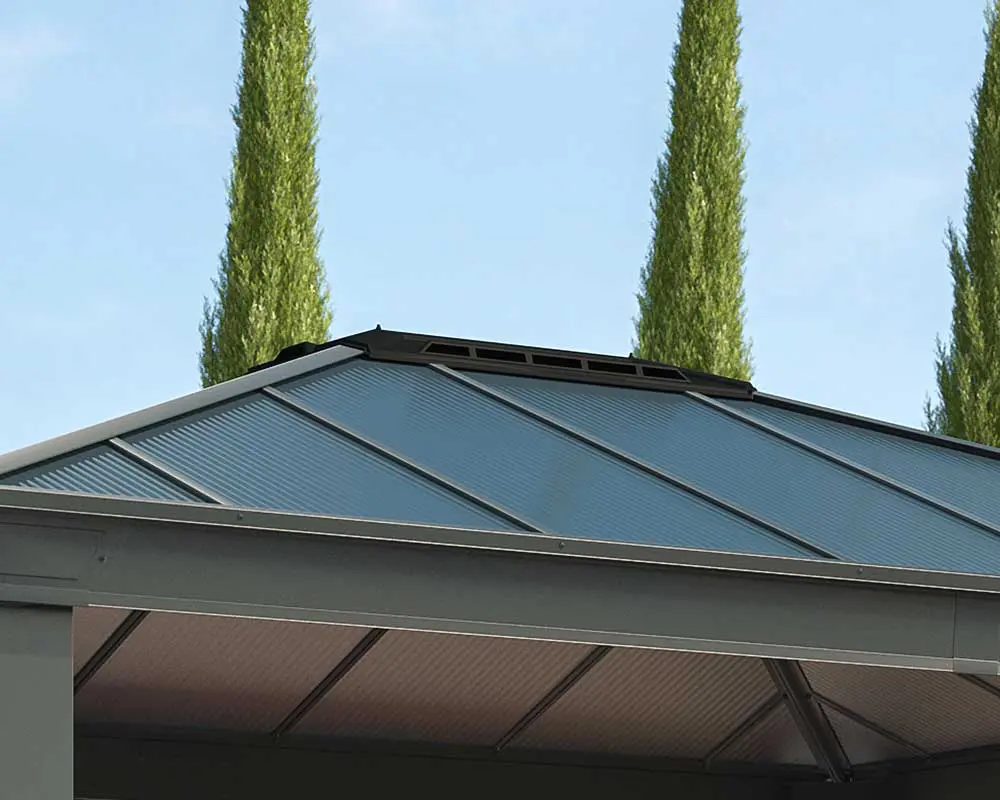

Polycarbonate roof panels
Virtually unbreakable, 100% UV protected, Grey opaque twin-wall polycarbonate panels are high impact and shatter resistant

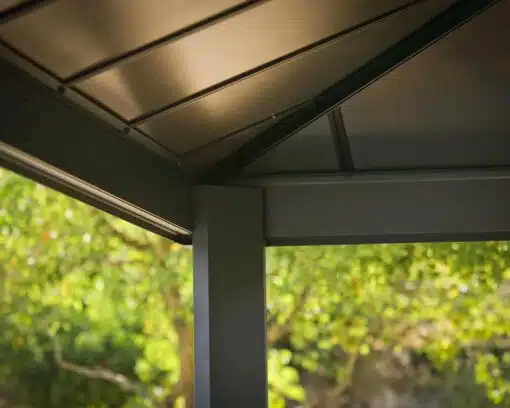

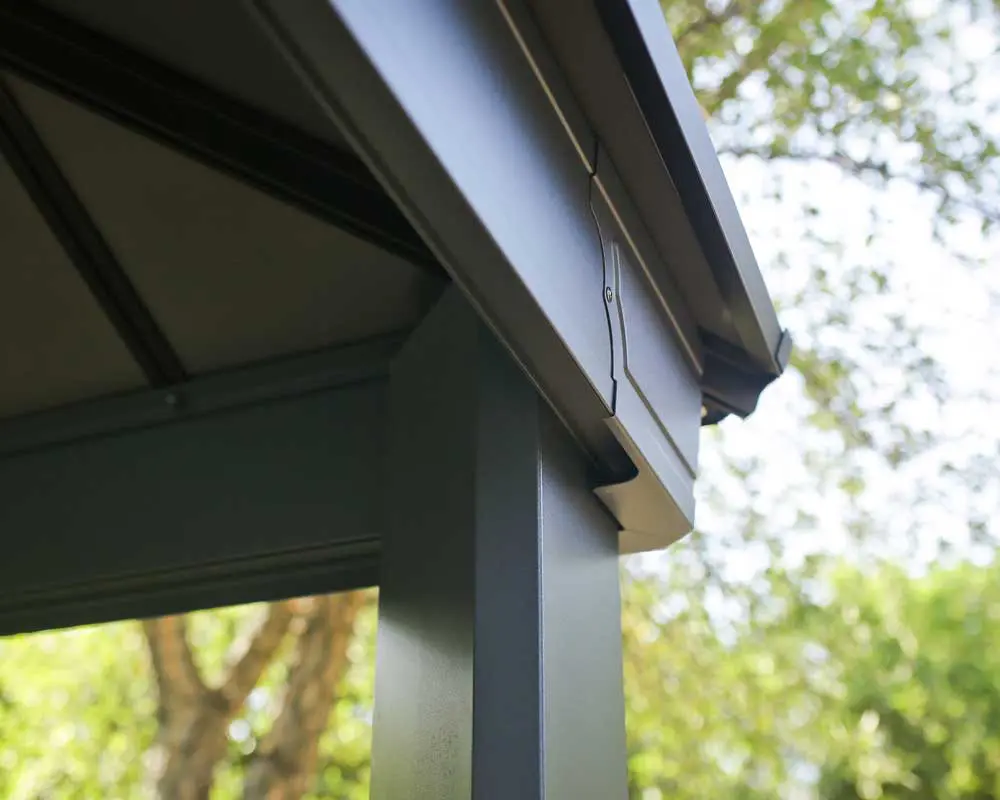

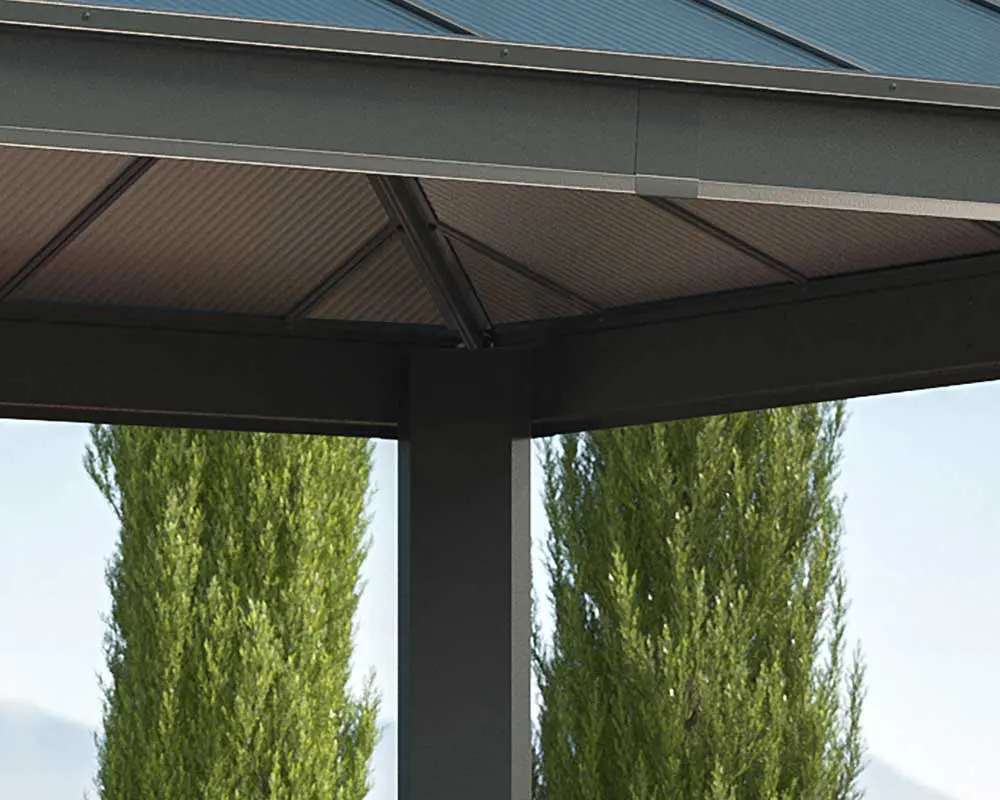

Aluminium Structure
- Robust, rust-resistant powder-coated frame made of heavy duty aluminium and laser cut galvanised steel connectors in anthracite finish
- Withstands harsh weather

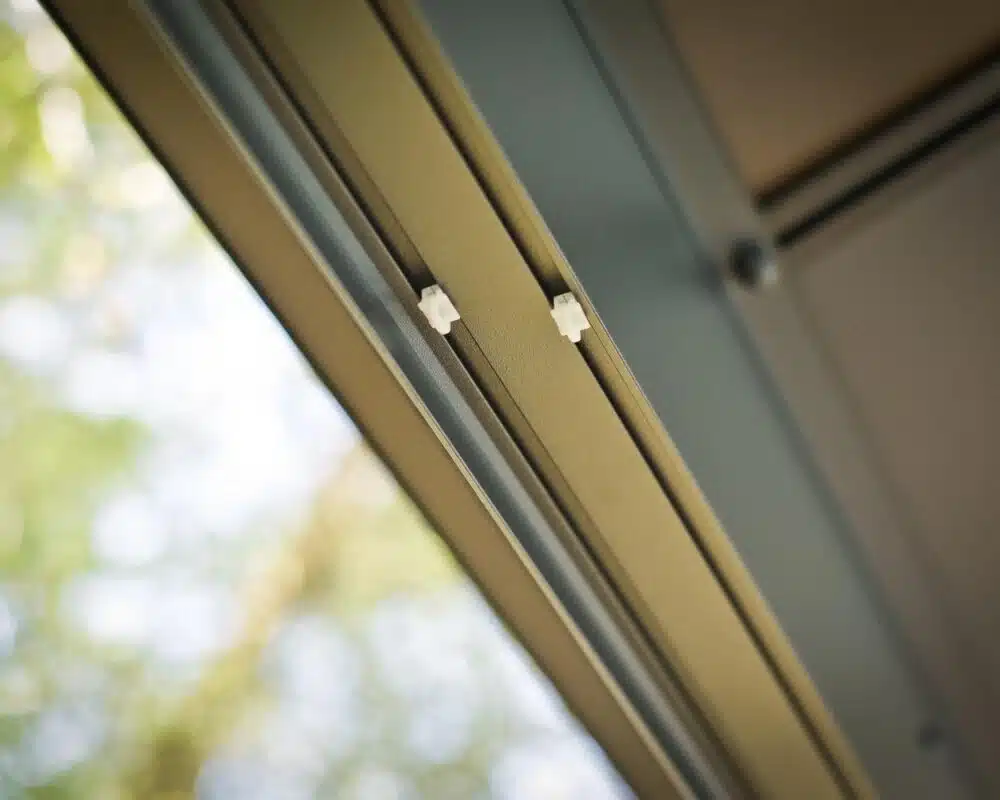

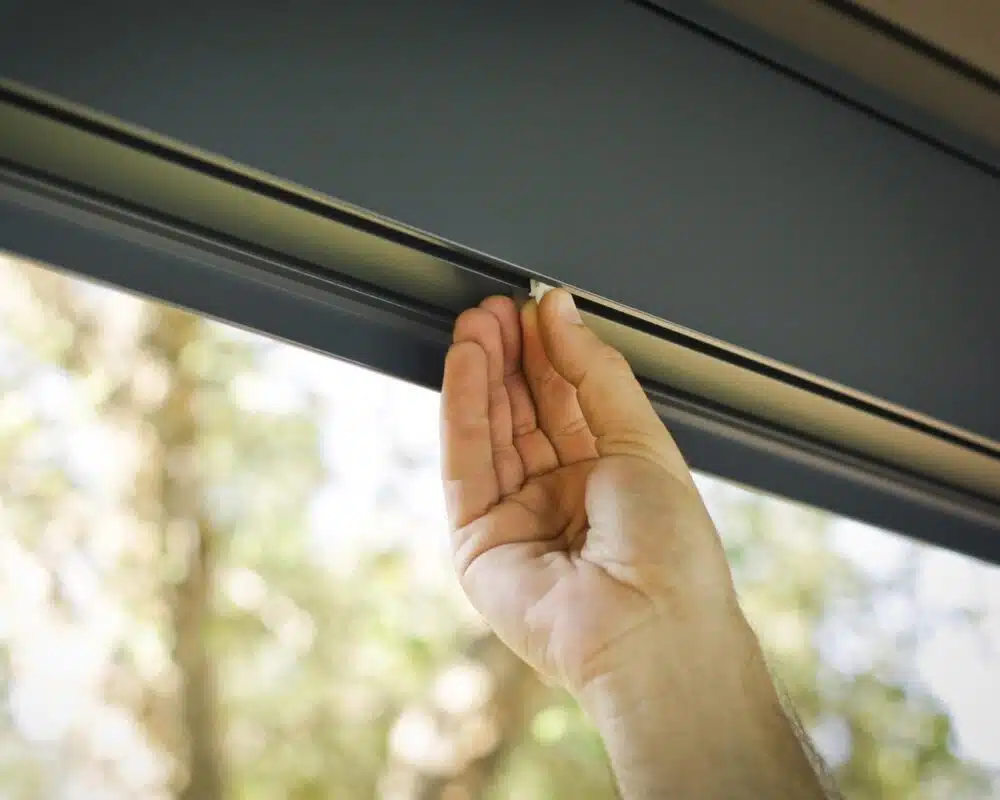

Integrated rails
• Integrated rails and hangers for adding curtains/netting
Specifications:
DALLAS 4300 & 4900
- WIND RESISTANCE – 100km/hr | 62ml/hr
- SNOW LOAD – 110kg/m² | 23lbs/ft²
- LIGHT TRANSMISSION – 2%
- POLYCARBONATE PANEL – 6mm

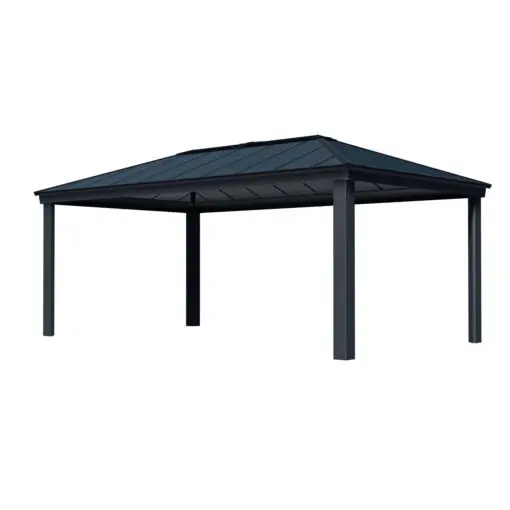

DALLAS 6100
- WIND RESISTANCE – 100km/hr | 62ml/hr
- SNOW LOAD – 90kg/m² | 18lbs/ft²
- LIGHT TRANSMISSION – 2%
- POLYCARBONATE PANEL – 6mm

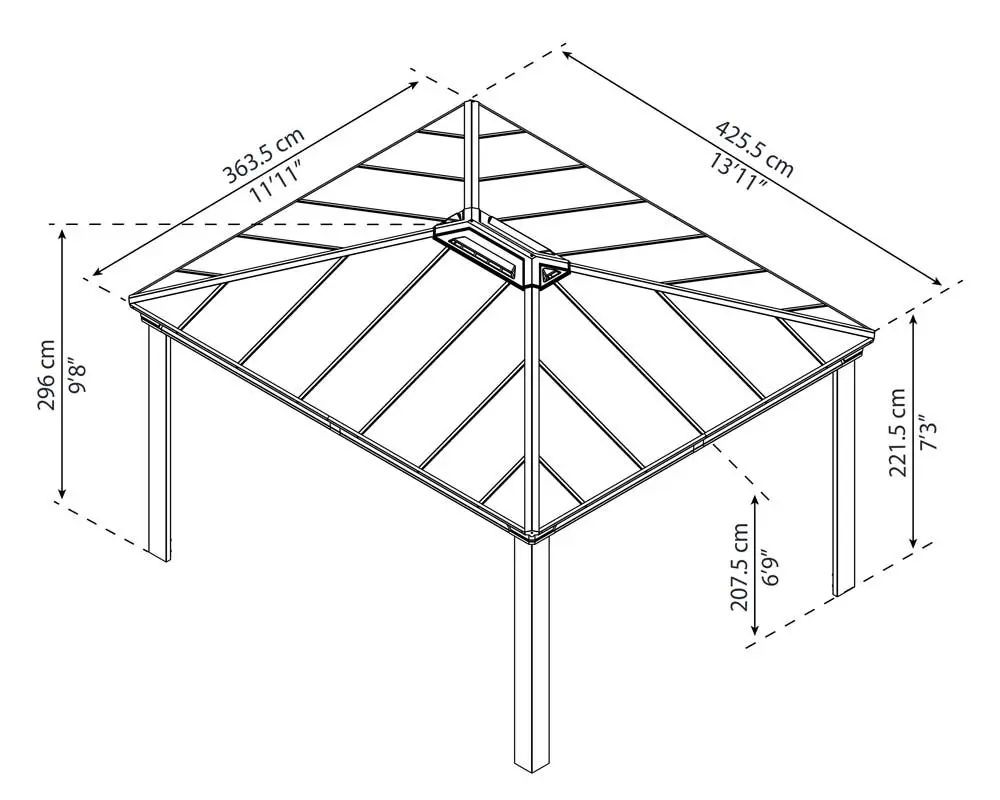

Dallas Gazebo Dimensions:
| ASSEMBLED | INTERNAL | DOOR DIMENSIONS | EAVES | BASE DIMENSIONS | ||||||
| cm | feet | cm | Inch | cm | Inch | cm | Inch | cm | Inch | |
| WIDTH | 363.5 | 11'11" | 296 | 117 | N/A | N/A | - | - | N/A | N/A |
| LENGTH | 425.5 | 13'11" | 358 | 141 | - | - | - | - | N/A | N/A |
| HEIGHT | 296 | 9'8" | 210 | 83 | N/A | N/A | 207.5 | 82" | - | - |
- COVERING AREA = 15.5M2 / 166FT
Packaging Dimensions & Weight
|
No of Boxes: 2 |
Length
|
Width
|
Height
|
Gross Weight |
Packaging Weight |
Net Weight |
| Box 1 | 252 cm | 75 cm | 20 cm | 83 kg | 6 kg | 77 kg |
| Box 2 | 187 cm | 66.5 cm | 29 cm | 64 kg | 5.5 kg | 58.5 kg |
| Total Weight: | 147 kg | 11.5 kg | 135.5 kg |

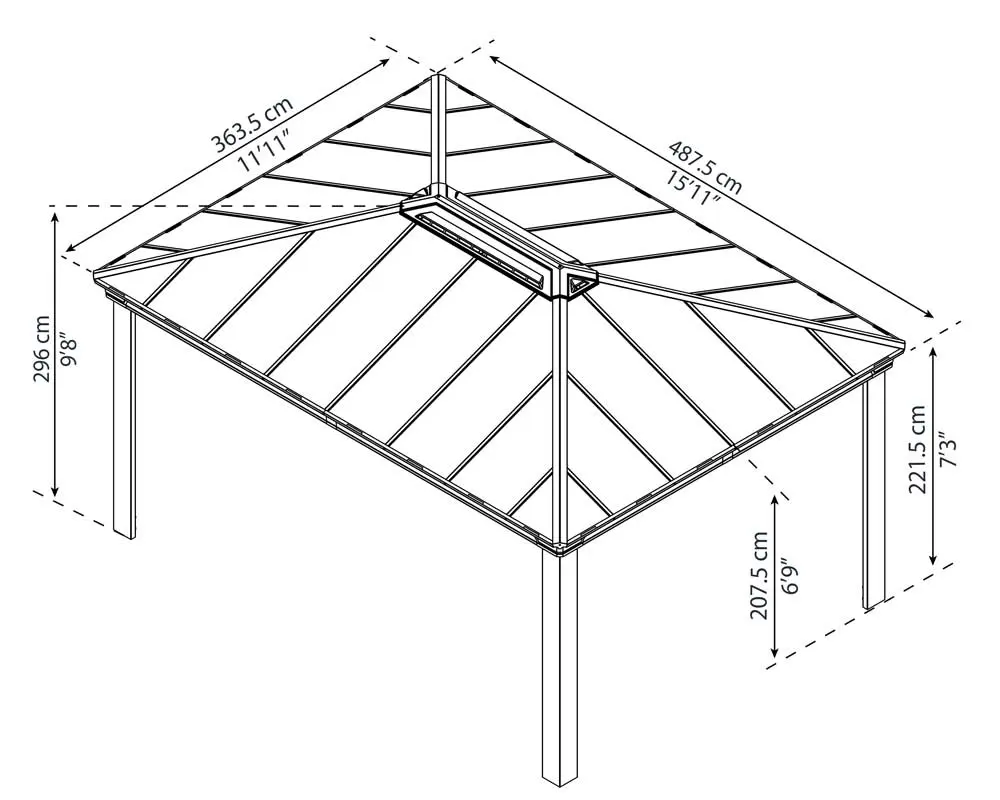

Dallas Gazebo Dimensions:
| ASSEMBLED | INTERNAL | DOOR DIMENSIONS | EAVES | BASE DIMENSIONS | ||||||
| cm | feet | cm | Inch | cm | Inch | cm | Inch | cm | Inch | |
| WIDTH | 363.5 | 11'11" | 296 | 117 | N/A | N/A | - | - | N/A | N/A |
| LENGTH | 487.5 | 15'11" | 420 | 165 | - | - | - | - | N/A | N/A |
| HEIGHT | 296 | 9'8" | 210 | 83 | N/A | N/A | 207.5 | 82" | - | - |
- COVERING AREA = 18M2 / 191FT2
Packaging Dimensions & Weight
|
No of Boxes: 2 |
Length
|
Width
|
Height
|
Gross Weight |
Packaging Weight |
Net Weight |
| Box 1 | 252 cm | 75 cm | 20 cm | 92 kg | 6 kg | 86 kg |
| Box 2 | 187 cm | 66.5 cm | 30 cm | 75 kg | 5 kg | 70 kg |
| Total Weight: | 167 kg | 11 kg | 156 kg |

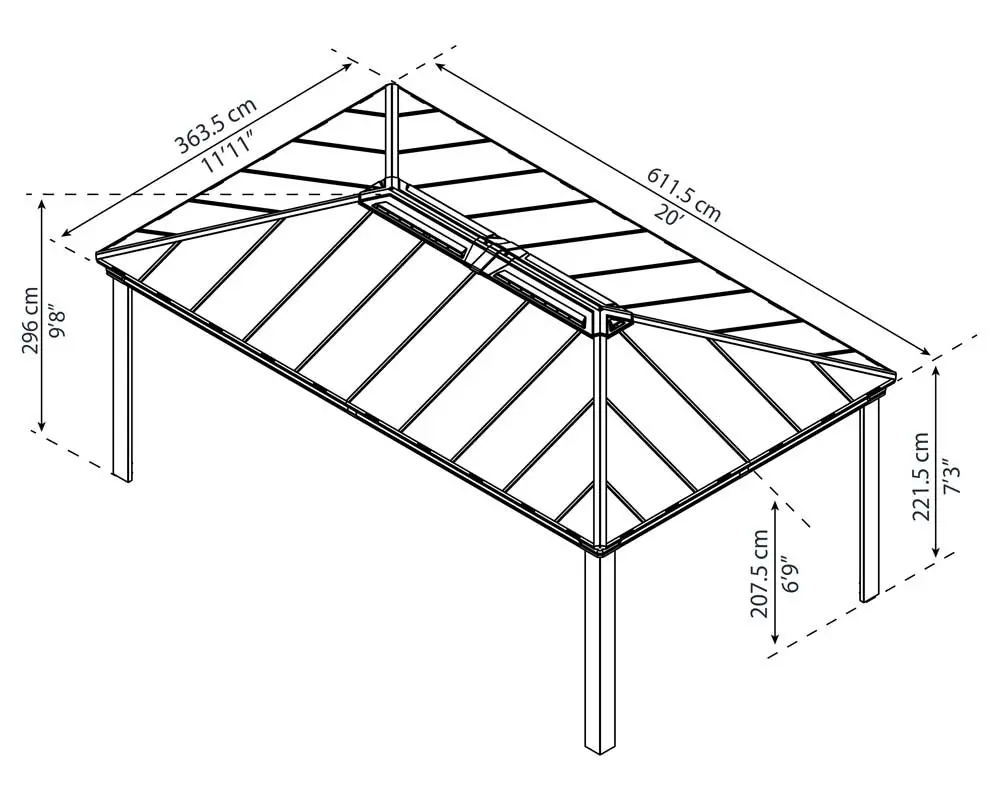

Dallas Gazebo Dimensions:
| ASSEMBLED | INTERNAL | DOOR DIMENSIONS | EAVES | BASE DIMENSIONS | ||||||
| cm | feet | cm | Inch | cm | Inch | cm | Inch | cm | Inch | |
| WIDTH | 363.5 | 11'11" | 296 | 117 | N/A | N/A | - | - | N/A | N/A |
| LENGTH | 611.5 | 20' | 544 | 214 | - | - | - | - | N/A | N/A |
| HEIGHT | 296 | 9'8" | 210 | 83 | N/A | N/A | 207.5 | 82" | - | - |
- COVERING AREA = 22M2 / 239FT2
Packaging Dimensions & Weight
|
No of Boxes: 2 |
Length
|
Width
|
Height
|
Gross Weight |
Packaging Weight |
Net Weight |
| Box 1 | 295 cm | 73.5 cm | 22.5 cm | 105.5 kg | 6 kg | 99.5 kg |
| Box 2 | 187.5 cm | 67 cm | 34cm | 97 kg | 5 kg | 92 kg |
| Total Weight: | 202.5 kg | 11 kg | 191.5 kg |
Click the link to view / download the assembly instructions PDF file:
Click the link to view / download manufacturer limited warranty PDF file:
| Feature/Gazebo Type | Palram – Canopia Garden Gazebo | Wood Gazebo | Metal Gazebo |
| Frame Materials | Aluminium and galvanised steel | Wooden | Metal |
| Covering type | Twin-Wall Polycarbonate roof panels | Shingles – Breakable, needs treatment Thatch – Rots if exposed to rain Polyester – colour fading and rot over time Fiberglass – may cause health problems (sold separately) | Polyester – colour fading and rot over time PVC – Not hail resistant Polycarbonate – hail resistant Aluminium – hail resistant |
| Light transmission | Bronze tinted panels – transmits diffused light yet offer shade | No light transmission (only with fiberglass) | No light transmission (only with Polycarbonate) |
| UV resistant | UV protected tinted panels and powder coated Aluminium frame | Special expensive coating is needed annually | Depends on the covering type |
| Rot resistance | ✔ | None, requires periodic special coating / treatment | ✔ |
| Drainage | Integrated gutter heads and drainage pipes | ✖ (sold separately) | ✖ (sold separately) |
| Maintenance | Maintenance free, rinse with water | Requires regular maintenance such as painting, rot treatments, sanding etc. | Requires regular maintenance such as painting and anti-rust treatment, corrosion and rust appear over time |
| Assembly | Quick and easy DIY setup | Requires professional setup / DIY setup | Requires professional setup / DIY setup |
| Assembly Kit | Fully equipped assembly kit provided | ✖ (sold separately) | Fully equipped assembly kit provided |
| Accessories | Integrated rails and clips for adding curtains / mosquito netting | ✖ | ✖ (sold separately) |
| Eco friendly | 100% recyclable and reusable | Uprooting forests | Harmful paints and materials pervade ground water |
| Warranty | 10 Year Limited | Varies | Varies |
| Packaging/transport | Single package | Heavy truck delivery | Heavy large dimensioned packages |
*****
Some of our products may require building and planning permissions. Please check with your local council for potential building and planning requirements before proceeding with installation. If you require the engineering certificate and calculation for council application please click below.
