Alpine Carport DIY Kit

Protect from severe weather and UV radiation with an elegant, durable and maintenance-free carport that offers a multi-purpose outdoor structure

Clear

Delivery Estimation: 3-5 working days for metro areas

Share This Product:

Free Delivery To:

NSW, VIC, SA, ACT & South East QLD

The Alpine carport DIY Kit is an upgraded version of the Arcadia carport that includes an extension kit that makes the Alpine a higher carport suitable for Caravans, RVs and lifted 4wds vehicles. It has all the benefits the Arcadia carports comes with plus a much higher clearance but still a stylish and durable Carport, and outdoor structure. It was crafted to meet your needs for outdoor protection for your car, boat, recreational vehicle and outdoor furniture from rain, snow, hail, and the sun’s harmful UV rays. The Alpine is a strong and stable carport, requires no maintenance and has long term durability. Attention to small details such as a gutter system to drain water away and anchoring hardware gives an added value to your carport. The Alpine is a high performance carport that was designed to be easily installed by 2 people and requires no experience, no special skills, and no special tools. It provides your family with an elegant cover that is sturdy, maintenance and rust free for many years to come.

Suitable for a Caravan, RV or a lifted 4wd

  • Unique screw-free roofing system; leak-free glazing, rust-resistant structure, sleek and classy design
  • Virtually unbreakable, bronze tinted 6 mm twin-wall polycarbonate roof panels, allow 15% light transmission
  • Panels are high impact, shatter resistant and provide 100% UV protection; they do not discolour, fracture or become brittle over time
  • Simple DIY assembly – Sliding panels’ installation system, no special skills
  • Robust, rust-resistant dark grey powder coated aluminium frame & laser cut galvanised steel connectors
  • Sturdy,  aluminium posts with adjustable elevation (3.15 in. x 3.15 in./8 x 8 cm)
  • Ready to assemble pre-drilled profiles, pre-cut panels, all screws and anchors included
  • Requires a solid level surface
  • Maintenance free – no rust, rot, peel, moss or fungus
  • Anchoring and foot pads kit included, to secure the carport to the surface of your choosing, structure can be relocated
  • Integrated gutters and built-in gutter outlets 2 in. dia. (5 cm) to easily channel and collect rainwater
  • Maximum carport’s height 11’7″ (352 cm)
Bronze UV protected polycarbonate Arcadia 5000 Carport

Polycarbonate panels

• Virtually unbreakable, advanced engineered Clear or Bronze 6 mm twin-wall polycarbonate roof panels are high impact, shatter resistant and protect from inclement weather
• Maintain their integrity, provide complete UV blockage, and are 100% UV protected; they do not discolor, fracture or become brittle over time
• Safe, quick and easy DIY assembly – Slide and lock roofing installation
• Ready to assemble pre-cut panels

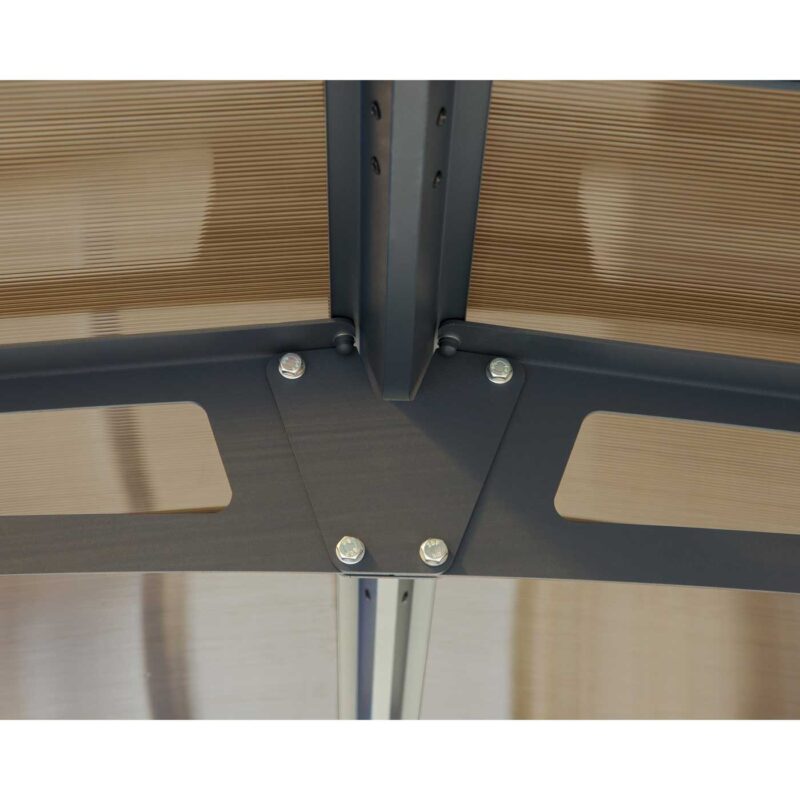

Aluminium Structure Arcadia 5000 Carport

Aluminium Structure

• Rust-resistant, anthracite powder-coated frame made of heavy duty aluminium and laser cut galvanised steel connectors
• Ready to assemble pre-drilled profile

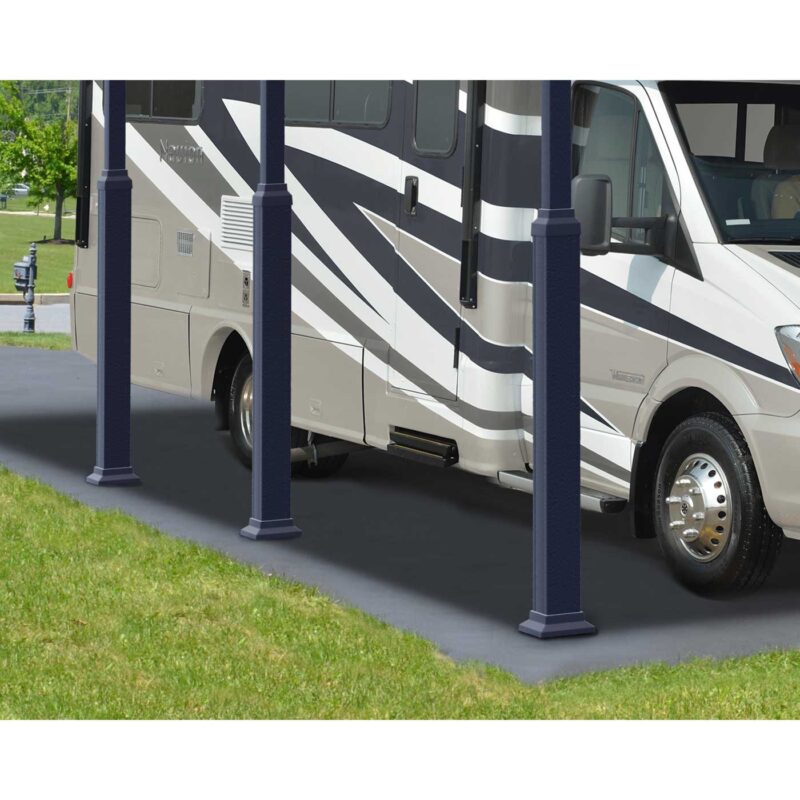

Palram_Carports_Arcadia_Alpine_Kit_Anchoring

Anchoring

• Requires a solid level surface, Anchoring and foot-pads included – Secure the carport to the surface of your choosing
• Structure can be easily relocated
• 6 Sturdy and durable 8×8 cm (3.15 in. x 3.15 in.) aluminium poles

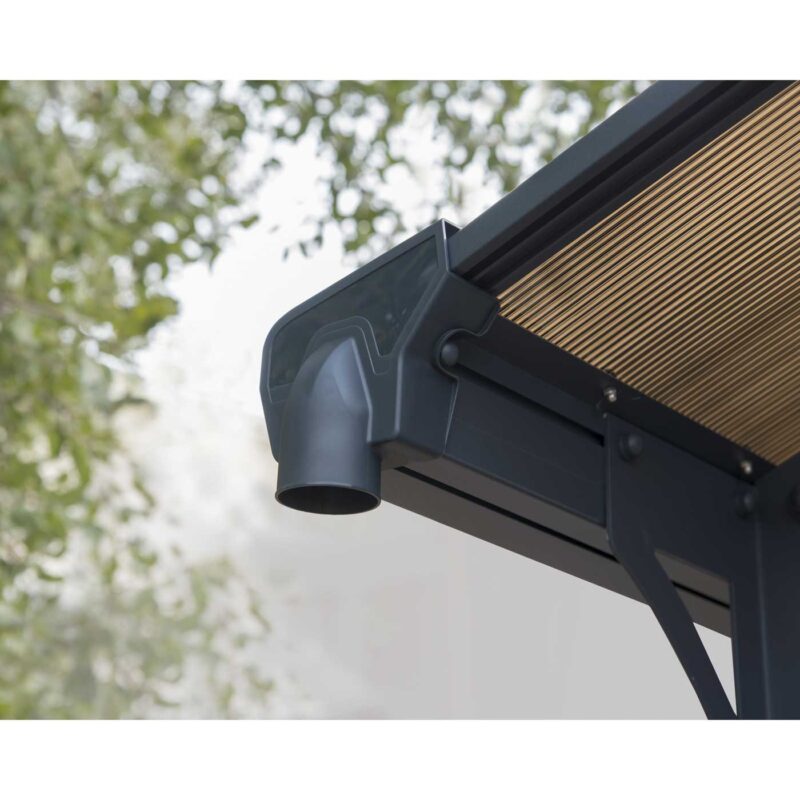

Arcadia_Carport_Palram_Gutter_2031

Gutter & gutter heads

• Integrated gutter and gutter heads allow you to easily channel and collect rainwater for a sustainable irrigation system

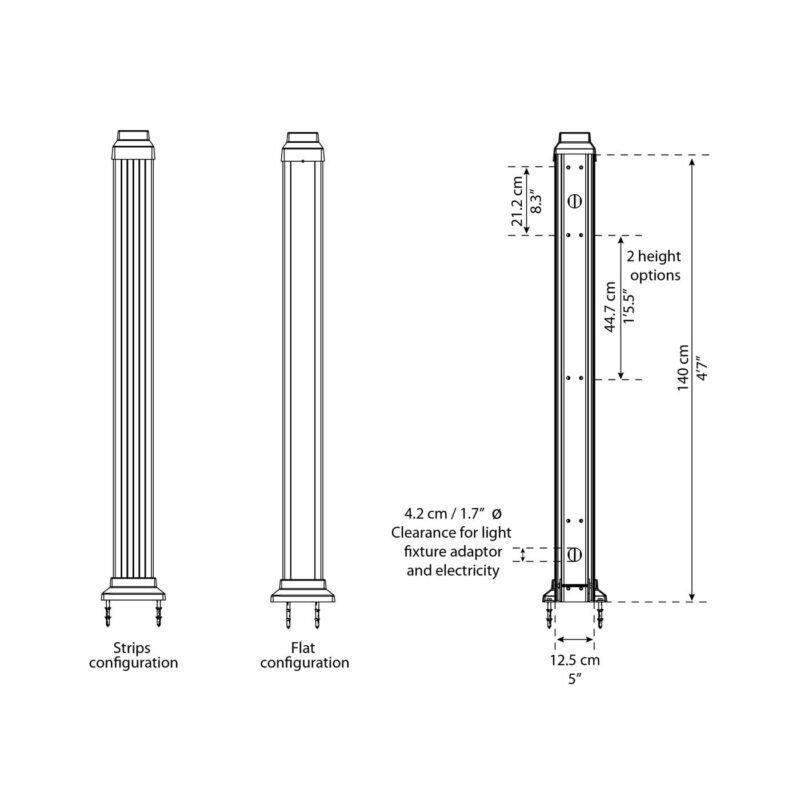

Alpine Pole Dimensions:

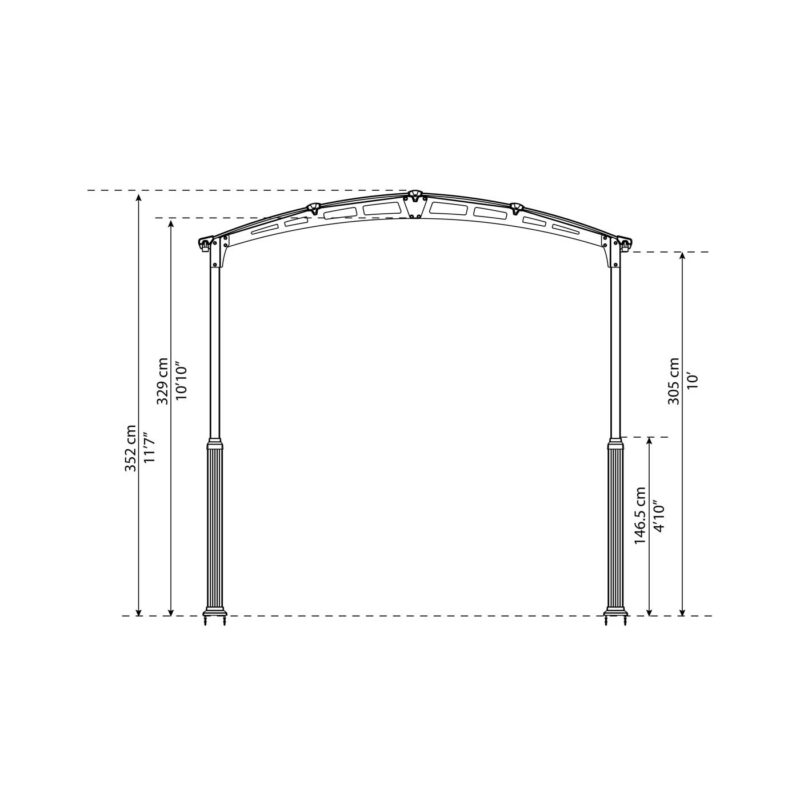

Alpine Maximum Height Front View:

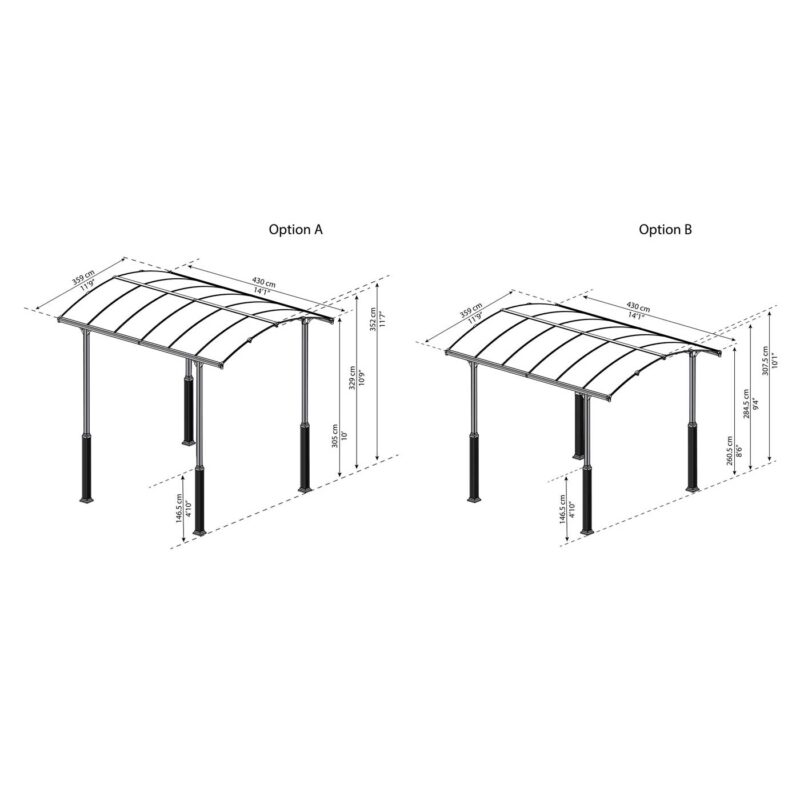

Alpine 4300 - 430 x 359 cm
  ASSEMBLED INTERNAL DOOR DIMENSIONS EAVES BASE DIMENSIONS
cm feet cm Inch cm Inch cm Inch cm Inch
WIDTH 359 11'9" 325 128.0 N/A N/A - - N/A N/A
LENGTH 430 14'2" 431 169.5 - - - - N/A N/A
HEIGHT

Option A: 352

Option B: 307.5

Option A: 11'7"

Option B: 10'1"

Option A: 305

Option B: 260.5

N/A N/A N/A 194.0 76.4 - -
  • COVERING AREA = 15.5M2 / 166.4FT2
  • STORAGE AREA = 14.0M2 / 150.6FT2
  • PRODUCT VOLUME = 30.5M3 / 1077.4FT3
Alpine 5000 - 502 x 359 cm
  ASSEMBLED INTERNAL DOOR DIMENSIONS EAVES BASE DIMENSIONS
cm feet cm Inch cm Inch cm Inch cm Inch
WIDTH 359 11'11" 325 128.0 N/A N/A - - N/A N/A
LENGTH 502 16'6" 502 197.6 - - - - N/A N/A
HEIGHT

Option A: 352

Option B: 307.5

Option A: 11'7"

Option B: 10'1"

Option A: 305

Option B: 260.5

N/A N/A N/A N/A 186.0 73.2 - -
  • COVERING AREA = 18.2M2 / 195.6FT2
  • STORAGE AREA = 16.3M2 / 175.6FT2
  • PRODUCT VOLUME = 34.9M3 / 1233.0FT3

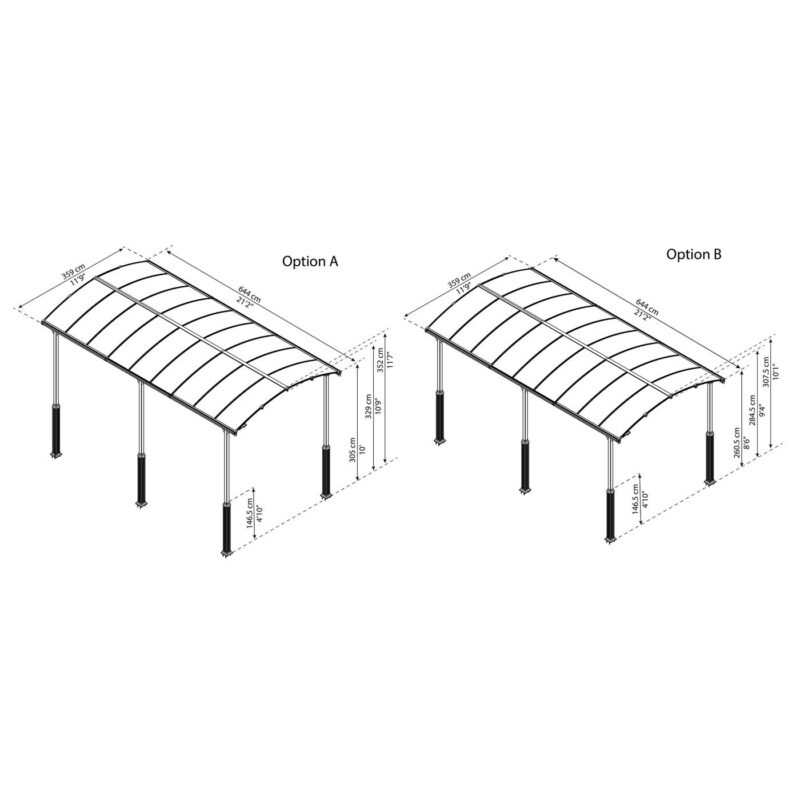

Alpine 6400 - 644 x 359 cm
  ASSEMBLED INTERNAL DOOR DIMENSIONS EAVES BASE DIMENSIONS
cm feet cm Inch cm Inch cm Inch cm Inch
WIDTH 359 11'9" 325 128.0 N/A N/A - - N/A N/A
LENGTH 644.0 21'2" 644 253.5 - - - - N/A N/A
HEIGHT

Option A: 352

Option B: 307.5

Option A: 11'7"

Option B: 10'1"

Option A: 305

Option B: 260.5

N/A N/A N/A 194.0 76.4 - -
  • COVERING AREA = 23.1M2 / 248.9FT2
  • STORAGE AREA = 20.9M2 / 225.3FT2
  • PRODUCT VOLUME = 45.6M3 / 1611.3FT3

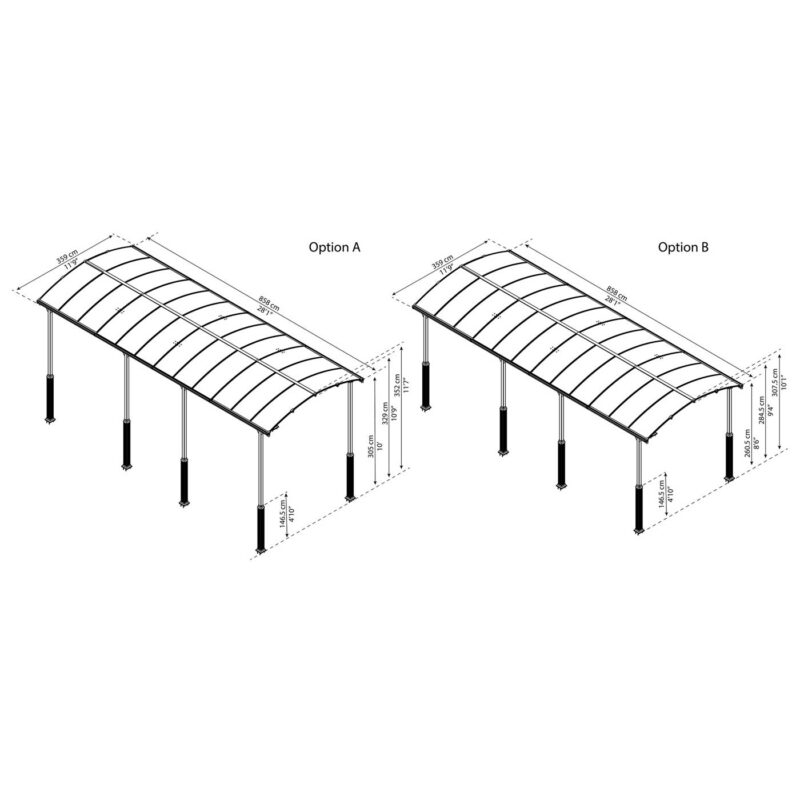

Alpine 8500 - 858 x 359 cm
  ASSEMBLED INTERNAL DOOR DIMENSIONS EAVES BASE DIMENSIONS
cm feet cm Inch cm Inch cm Inch cm Inch
WIDTH 359 11'9" 325 128.0 N/A N/A - - N/A N/A
LENGTH 858.0 28'2" 431 169.5 - - - - N/A N/A
HEIGHT

Option A: 352

Option B: 307.5

Option A: 11'7"

Option B: 10'1"

Option A: 305

Option B: 260.5

N/A N/A 195.0 76.8 - -
  • COVERING AREA = 30.8M2 / 331.6FT2
  • STORAGE AREA = 14.0M2 / 150.6FT2
  • PRODUCT VOLUME = 30.6M3 / 1079.8FT3

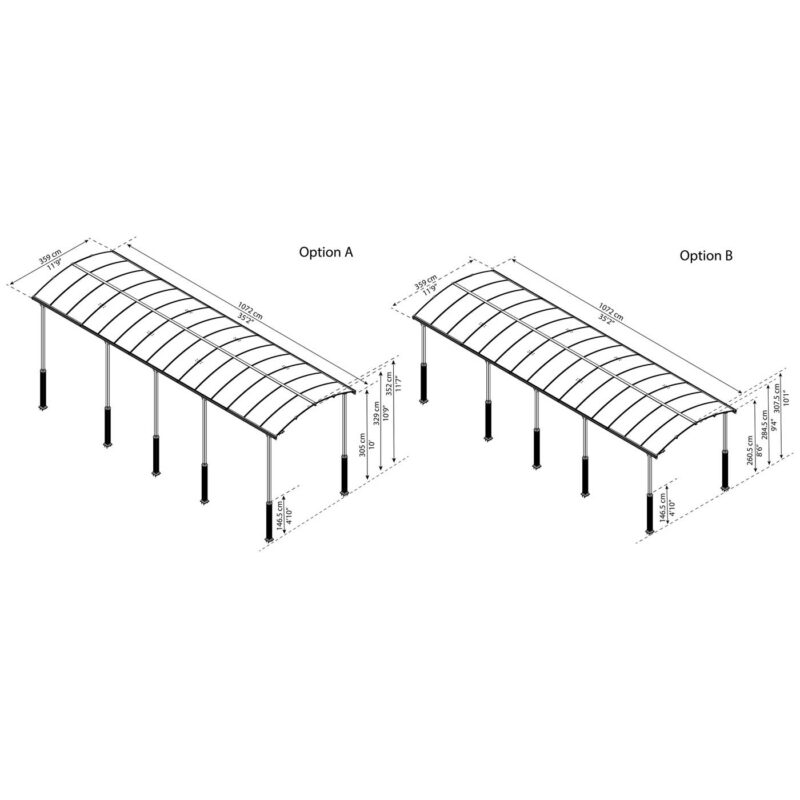

Alpine 10600 - 1072 x 359 cm
  ASSEMBLED INTERNAL DOOR DIMENSIONS EAVES BASE DIMENSIONS
cm feet cm Inch cm Inch cm Inch cm Inch
WIDTH 359 11'9" 325 128.0 N/A N/A - - N/A N/A
LENGTH 1072.0 35'2" 431 169.5 - - - - N/A N/A
HEIGHT

Option A: 352

Option B: 307.5

Option A: 11'7"

Option B: 10'1"

Option A: 305

Option B: 260.5

N/A N/A N/A 196.0 77.2 - -
  • COVERING AREA = 38.5M2 / 414.3FT2
  • STORAGE AREA = 14.0M2 / 150.6FT2
  • PRODUCT VOLUME = 30.6M3 / 1082.3FT3

Click to view assembly PDF file:

Click to view certificates PDF file:



Feature / Carport Type Palram Carport Wooden Carport Fabric Carport Metal Carport
Frame Materials Heavy duty, corrosion resistant Aluminium and galvanised steel Wood Fabric and Steel Steel
Covering Type / Hail Resistance Virtually unbreakable Twin-Wall Polycarbonate roof panels Usually sold separately Polyester – Colour fading and rot over time / Polyethylene fabric – Hail resistant Usually sold with the following cover options: PVC – Not hail resistant / Tin roof – May dent / Fiberglass – May cause health problems / Aluminum – Hail resistant
UV Resistance All UV resistant – 100% UV protected non yellowing panels and powder coated Aluminum frame Special expensive coating is needed annually UV protected Depend upon powder coating quality
Rot Resistance Yes None, requires periodic special coating / treatment Depends on the covering type Yes
Drainage Integrated gutter and gutter heads None (may be sold separately) None None (may be sold separately)
Weather Resistance Extreme weather resistant – No wear and tear Withstands low temperatures up to -210°F / Withstands high temperatures up to 270°F Needs periodic treatments Weather resistant – Good corrosion resistance Does not withstand high temperatures, can become brittle over time Needs periodic treatments
Maintenance Maintenance free, rinse with water Requires regular maintenance such as painting, rot treatments, sanding etc. Requires regular maintenance such as replacing the covering, painting and anti-rust treatment, corrosion and rust appear over time Requires regular maintenance such as painting and anti-rust treatment, corrosion and rust appear over time
Assembly Quick and simple DIY setup – Assembled with common household tools Usually requires professional setup Quick and easy DIY setup Usually requires professional setup
Assembly Kit Fully equipped assembly kit provided – Anchoring and foot-pads Kit along with all screws and bolts None (sold separately) Usually a fully equipped assembly kit provided Usually a fully equipped assembly kit provided
Eco Friendly 100% recyclable and reusable Uprooting forests Does not decompose, becoming an environmental contamination Harmful paints and materials pervade ground water
Warranty 10 year Varies None – 1 Year Varies
Packaging / Transport Compact & efficient packaging, to be transported in your own pickup Usually a heavy truck delivery Compact packaging Usually a heavy truck delivery
